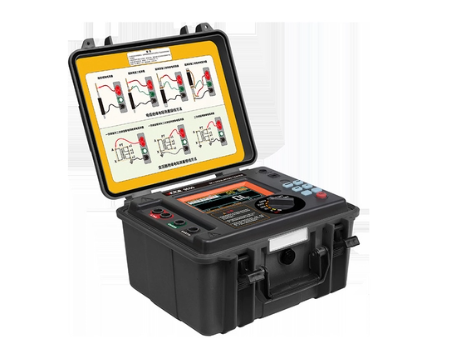

VICTOR 9600B ເຄື່ອງທົດສອບສນວນ (0.005MΩ~10.0TΩ, 10kV)

Rated Voltage:50V, 250V, 500V, 1kV, 2.5kV, 5kV, 10kV

Insulation Resistance Range:0.005MΩ~10.0TΩ

Short Circuit Current: 5mA Max

Function:Insulation resistance measurement (IR); polarization index measurement (PI); absorption ratio (DAR); Step test(STEP); Ramp test(RAMP); Voltage measurement(V);

Power Supply:Rechargeable lithium battery 5.2Ah 14.8V

Custom Setting Voltage: 40V~5kV

Output Voltage Accuracy:(5%~10%)±10V

Polarization Index(PI):Yes

Dielectric Absorption Ratio(DAR):Yes

Step Test(STEP):Yes

Ramp Test(RAMP):Yes

Voltage Test

Range: DC:0V~800V；Accuracy: ±5%rdg±3V

Range: AC: 0V~700V; Accuracy: ±5%rdg±3V

Real Time Current Display:Display test current value, current display range: 0.001nA～5mA

Real Time Voltage Display:Real time monitoring the voltage of the tested terminal,In the non-test state, when the voltage is larger than 36V, the test is prohibited to protect the safety of the instrument and the operator.

Test Timer:Automatic record test time, time range: 0s~9999s

Test Time:After selecting the DAR, PI test options, the test will be stopped immediately after the test result is obtained; in the custom test mode, the test duration can be set by user; in the normal test mode, the test time is not limited, and the operator can manually stop the test.

Custom Setting Time:10s~3600s

Store Function:Automatically store the test data, which can reply the test record in tester

USB Communication:Yes, the test record can upload to the PC through USB cable

Bluetooth Communication:Yes, can be connected to Android phones or other devices with Bluetooth communication function.

Battery Power Display:With battery power display, when battery voltage low will remind to charge in time

Automatic Shutdown:After 15 minutes start up will shut down automatically without any operation

Tester Dimension:280mm×260mm×160mm

Tester Weight:Host: 4326g (include the battery); Total weight: 6.96kg (Accessories)

Protection Level:Close the case IP65, open the case IP40

Working Environment:-20℃～50℃；80%rh

Store Environment:-25℃～65℃；80%rh

Insulation Resistance:50MΩ(1000v)(between the test circuit and shell)

Withstand Voltage:AC 3kV 50Hz 1min(between the test circuit and shell)

Suitable Safety Standard:IEC61010-1,IEC61326-1
