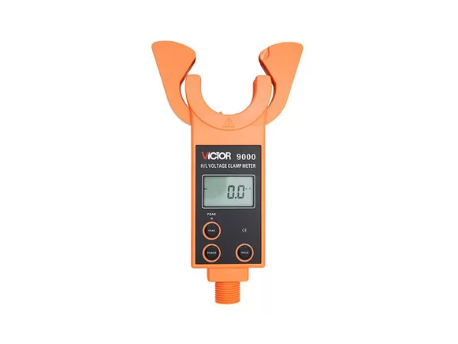

Function: High voltage AC current measurement, low voltage AC current, leakage current measurement, on-line AC current supervision.
Power Supply: DC6V Alkaline Dry Battery (1.5V AAA X 4)
Test Method: Clamp CT, Integral Method
Display Mode: 4 digital LCD display, backlight function, suitable for dark place.
LCD Dimension: 47mm×28.5mm
Meter Dimension: W/H/T: 76mm×255mm×31mm
Clamp Diameter: φ48mm
Sampling Speed: About 2 times/second
Range of measurement: 0.1mA～1000A(50/60Hz Auto Identification)
Accuracy: 0.1mA
Shift: 0.1mA~1000A Automatic Shift
Test Accuracy(23℃±5℃,Below 80%RH)
0.1mA～299mA: ±1%±3dgt
0.30A～49.9A: ±1.5%±5dgt
50.0A～199.9A: ±2.0%±5dgt
200A～600A: ±3%±5dgt
601A～1000A: ±4%±5dgt
Data Storage: 99 Groups, during storage, the symbol “MEM”gives indication, “FULL” mark will flash to indicate the memory has been full.
Circuit Voltage Test for the circuit below 23KV (operated with insulation rod)
Peak Maintenance: Automatically maintain the height of the test value, usually in the test mode press PEAK key, PEAK lights, that is, to keep open the PEAK function, then press PEAK key to cancel this function
Data Preservation: Under general test mode, press HOLD button to preserve data, “HOLD”symbol display. then press HOLD Key to cancel this function
Data Access: “MR”symbol indicates, it can read the stored data by turning upwards and downwards.
Overflow Display: Exceed measurement range overflow function: “OL A” symbol display
* No signal Indication When the receiver has not received transmit signal, it will display “no- -”symbol
Auto Shut Down: About 15 minutes after booting, the meter will shut down automatically, in order to decrease the battery consumption.
Battery Voltage: When the battery voltage is below 4.8V, the symbol of battery voltage“ ”will show to remind to replace battery.
Meter Quality: Tester: About 335g (Including battery), total quality of meter: about 2.5Kg (including insulation rod and battery.)
Work Temperature and Humidity: -10℃～40℃； Below 80%Rh
Storage Temperature and Humidity: -10℃～60℃； Below 70%Rh
Insulated Rod Dimension: φ32mm,1m/Section(5 Sections)
Insulation Intension: AC 40KV/rms (Between insulation rod and clamp core)
Structure: Anti-Dripping Type II
