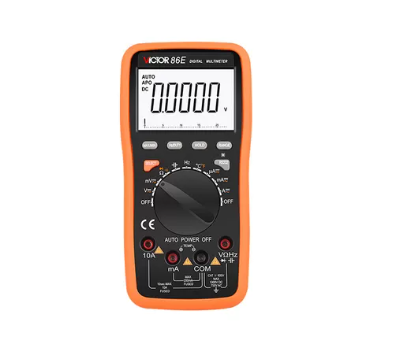

VICTOR 86E Digital Multimeter (1000VDC, 750VAC, 10ADC/AC)
DC Voltage
220mV/2.2V/22V/220V±(0.05%+8d)
1000V±(0.1%+10d)
AC Voltage
220mV±(0.5%+25d)
2.2V/22V/220V±(0.5%+5d)
750V±(1.0%+25d)
DC Current
220uA/2200uA /22mA±(0.5%+4d)
220mA±(0.8%+6d)
10A±(2.0%+15d)
AC Current
220uA/2200uA /22mA±(0.8%+15d)
220mA±(1.5%+25d)
10A±(2.5%+35d)
Resistance
220Ω±(0.5%+30d)
2.2kΩ/22kΩ/220kΩ/2.2MΩ±(0.4%+5d)
22MΩ±(0.5%+25d)
220MΩ±(5%+10d)
Capacitance
22nF/220nF/2.2uF/22uF/220uF±(2.5%+30d)
2.2mF/22mF±(5.0%+50d)
220mF±(7.0%+50d)
Frequency
22Hz/220Hz/22kHz/220kHz/2.2MHz/22MHz±(0.1%+4d)
50MHz±(0.2%+4d)
Celsius
-4~752℉±(1.2%+6℉)
≥752~1832℉±(1.9%+25℉)
Temperature
-20 ~400℃±(1.0%+5℃)
≥400~1000℃±(1.5%+15℃)
Special Function
Diode test√
Transistor test√
Continuity buzzer√
Low battery indication√
Data hold√
Auto power off√
Bar graph display:46segment(20times/s)
RS232 interface jack√
Function protection√
Shockproof protection√
Frequency /duty cycle:5.0%~94.9%
Input impedance:10MΩ
Sampling rate:2 times/s
AC Frequency response:(40~400Hz)
Operation way:Manual/Auto range
Max. Display:22000
Power:9V
General Characters
Product Net Weight:Approx.410g (including battery)
Product dimension:185×91×49mm
Standard Accessories:Test leads; battery; instruction manual TP01 temperature probe, Holster
