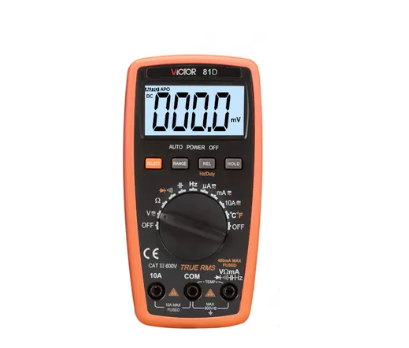

VICTOR 81D Digital Multimeter (600VAC/DC,10ADC/AC, True RMS)

DC Voltage: 400mV/4V/40V/400V/600V ±(0.5%+4)

AC Voltage: 4V/40V/400V/600V ±(0.8%+6)

DC Current: 400uA/4000uA/40mA/400mA/10A ±(1.0%+10)

AC Current: 400uA/4000uA/40mA/400mA/10A ±(1.5%+10)

Resistance:400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(0.8%+4)

Capacitance: 4nF/40nF/400nF/4uF/40uF/100uF/1000uF ±(3.5%+8)

Frequency:1Hz/10Hz/100Hz/1kHz/10kHz/100kHz/30MHz ±(0.5%+10)

Celsius: (-20-1000)℃ (-4～1832)℉ ±(1.0%+5)

Special Function

Diode test & Continuity buzzer √

Low battery indication √

Data hold √

Auto power off √

Function protection √

10A fuse √

Shockproof protection √

self-resume fuse protection for mA √

Unit symbol display √

Relative value measurement √

Duty cycle measurement: 0.1%-99.9%

Input impedance: 10MΩ

Sampling rate: 3 times/s

AC Frequency response: (50-200)Hz

Operation way: Auto range

Max. Display: 3 3/4 (3999)

LCD size: 57×33mm

Battery: 3V(1.5×2)

General Characters

Product Net Weight: Approx: 200g(including battery)

Product Dimension: 145×80×30mm

Standard Accessories: Test leads, battery, instruction manual, TP01 K style temperature probe,
