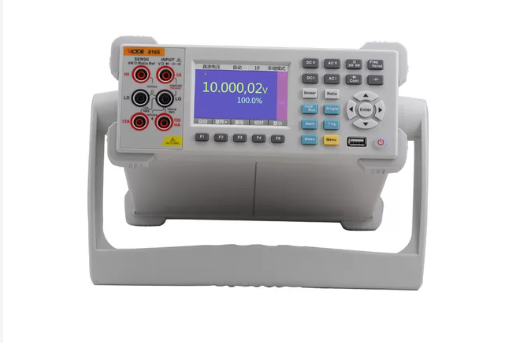

VICTOR 8165 Bench-type DMM (Without rear panel signal input terminal, TRMS)

Display:3.5 inches color screen (with resolution of 320*480)

Displayed digit:6 1/2

Signal terminal:Front/Rear

Maximum measuring speed:2300 readings/second

DCV

Uncertainty0.0030+0.0005

Measurement range0mV-1000V

Maximum resolution100nV

ACV

Uncertainty:0.06+0.03

Measurement range:1mV-750V

Maximum resolution:100nV

Frequency range:3Hz-300kHz

DCI

Uncertainty:0.05+0.006

Measurement range:0uA-12A

Maximum resolution:100pA

ACI

Uncertainty:0.10+0.04

Measurement range:1uA-12A

Maximum resolution:100pA

Frequency range:3Hz-10kHz

Resistance

Uncertainty:0.01+0.001

Measurement range:0Ω-1GΩ

Maximum resolution:10uΩ

Frequency/period

Uncertainty:0.007

Measurement range:3Hz-300kHz

Maximum resolution:1uHz

Capacitance

Uncertainty:1+0.3

Measurement range:0nF-100mF

Maximum resolution:1pF

On-off/Diode:Yes

Proportion (DC: DC)

Reference terminal range:100mV-10V

Input terminal range:100mV-1000V

Temperature

Type:Platinum resistance, thermistor and user-defined sensor

Maximum resolution:0.001℃

Math function:Relative (ax+b), maximum/minimum/average, standard deviation, dB, dBm, reading-keeping and limits test

Graph:Histogram and tendency chart

Interface:RS-232, IEEE 488, LAN, USB Device, USB Host, Trig IN/OUT

Programming language:SCPI compatible with Agilent 34401A and Fluke 45
