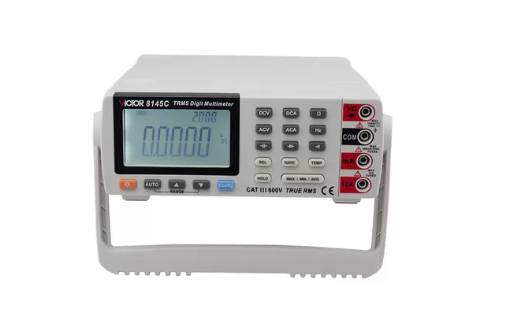

VICTOR 8145C Bench-type DMM (1000VDC, 750VAC, 10ACA/DCA, TRMS)

DC voltage: 200mV/2V/20V/200V/1000V ±(0.05%+4dgt)

AC voltage: 200mV/2V/20V/200V/750V ±(0.5%+40dgt)

DC current: 0.2mA/2mA/20mA/200mA/10A ±(0.2%+10dgt)

AC current: 0.2mA/2mA/20mA/200mA/10A ±(0.8%+30dgt)

Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/60MΩ ±(0.2%+5dgt)

Capacitance: 10nF/100nF/1000nF/10uF/100uF/1000uF ±(5%+5dgt)

Frequency: 10Hz～10MHz ±(0.02%+4dgt)

Thermocouple: K indexing:-200.0°C～1372.0°C ±(0.5%+5°C)

Display words: 22000

The measurement rate

Quick: 20 times / sec

Slow: 2.5 times / sec

Automatic / manual range √

True RMS √

Bandwidth: 1kHz

Diode test √

Continuity beeper √

MAX/MIN/AVG √

Relative value measurement √

Data Hold √

The reference junction compensation √

°C/ ° F conversion √

Input impedance: 10MΩ

Communication interface: The isolation of the USB interface and PC communication

Online communication: Support the SCPI command, can realize remote control instrument by the device driver software. The powerful function, friendly man-machine interface, the user can conveniently obtain multiple data parameters of instrument, and the data storage, processing, management, access to data is displayed in the graphical or tabular form.

Display type: LCD

Backlight √

Power Supply: 220V±10%AC or 110V±10%AC,50Hz or 60Hz

Power: About 3W

Safety: CAT II 300V, Electromagnetic compatibility, IEC61326-1,Group1,Class B

Size: 245 × 220 × 82(mmdgt)

Weight: About 2kg
