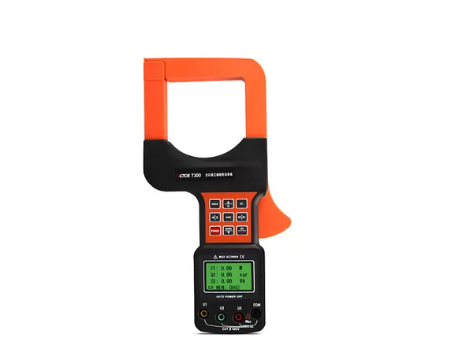

VICTOR 7300 ເຄື່ອງທົດສອບພະລັງງານສາມເຟດໃຫຍ່ Calibre (AC 0.00mA~1200A)

Current Range:

AC 0.00mA~1200A

Resolution0.01mA

Power Range:

AC 0.5W~720KW

Resolution0.01W

Line Voltage:Below AC 600V line measurement

Frequency Range:25Hz~100Hz Resolution0.1Hz

Phase Range:
0.0°~360.0°

Resolution0.1°

Power Factor Range:0.3~1.0 (capacitive or inductive )

Electric Energy Range:

0.0000KWh~72000KWh

Resolution0.0001KWh

Power:6V DC(LR6×4 alkaline dry batteries, continuously working for 12 hours)

Working Current:50mA with enabled backlight; 25mA with disabled backlight

Weight:1kg(with batteries and accessories)

Meter Size:Length 275mm × Width 145mm × Height 40mm

Clamp Size:80mm×80mm(can clamp electric cable of 80mm diameter, or 96mm×4mm flat cable and steel earth wires)

Sample Rate:About 2 times/second

Frequency:50Hz ,60Hz automatic identification

Communication Wire:RS232 communication. Wire: 1.8m
