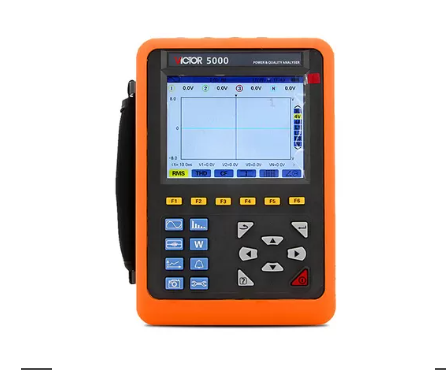

VICTOR 5000 ເຄື່ອງວິເຄາະຄຸນນະພາບພະລັງງານ (40Hz~ 70Hz, TRMS)
Power supply:Rechargeable lithium-ion battery packs 9.6V, backup charger.
Battery indicator:Battery symbol shows dump energy. When the voltage is too low, automatic shutdown after the 1 minute.
Power consumption:Current consumption of normal test 490 mA, continuous working for 8 hours.
Display mode:LCD color screen, 640dots×480dots, 5.6 inches, display domain: 116mm×88mm.
Size of clamp
008 small sharp current clamp: 7.5mm×13mm;
040circle current clamp: 35mm×40mm;
068Bcircle current clamp: 68mm×68mm.
300F Flexible Coil Current Sensor (with Integrator) : Ф300mm
Instrument dimensionsL×W×H: 240mm×170mm×68 mm.
Number of channels:4U/4I.
Phase-to phase voltage:1.0V~2000V.
Phase-to-neutral voltage:1.0V~1000V.
Current
008B current clamp: 10mA~10.0A;
040B current clamp: 0.10A~100A;
068B current clamp: 1.0A~1000A;
300F Flexible Coil Current Sensor (with Integrator) : 10A ~ 3000A
Frequency:40Hz~70Hz.
Parameters of electricity:W, VA, Var, PF, DPF, cosφ, tanφ.
Energy parameters:Wh, Varh, Vah.
Harmonic:Order 0~50.
Total harmonic distortion:Order 0~50, each phase.
Expert mode:Yes.
Number of Transient records150 sets.
Voltage flickerYes.
Starting current mode:Yes, 100 seconds.
3 phases unbalance:Yes.
Record:300 days(simultaneous recording 20 parameters, record one point every 5 seconds).
Min/Max recorded value:Measurement of maximum and minimum values over a period of time.
Alarm:40 different types of parameter selections, 12,800 sets alarm logs.
Peak:Yes.
Phasor diagram display:Automatically.
Capacity of snapshots:60.
Menu language:English/Chinese.
Communication:USB.
Automatic switching off
When an alarm campaign is initiated or a search for transients, an inrush current capture, or a trend recording is pending or in progress,the device is not automatic switching off.
In other test mode, 15 minutes without keystrokes, automatic shutdown after prompt 1 minute.
Backlight function:Yes, suitable for use at night and dark place.
WeightHost: 1.6kg (with battery).
008B small sharp current clamp: 170g×4;
040Bcircle current clamp: 190g×4;
068Bcircle current clamp: 510g×4;
300F Flexible Coil Current Sensor (with Integrator) : 330g×4;
Test wires and power adapter: 900g;
Total weight: about 9.2kg (with packaging).
Length of voltage test wire:3m.
Length of current sensor wire:2m.
Working temperature and humidity:-10°C~40°C; below 80%Rh.
Storage temperature and humidity:-10°C~60°C; below 70%Rh.
Input impedanceInput impedance of test voltage:1MΩ.
Withstand voltage:Withstand 3700V/50Hz sinusoidal AC voltage for 1 minute between instrument wiring and shell.
Insulation:Between instrument wiring and shell ≥10MΩ.
Structure:Double insulation, with insulation vibration-proof sheath.
Safely rules:IEC 61010 1000V Cat III / 600V CAT IV, IEC61010-031, IEC61326, Pollution degree: 2.
