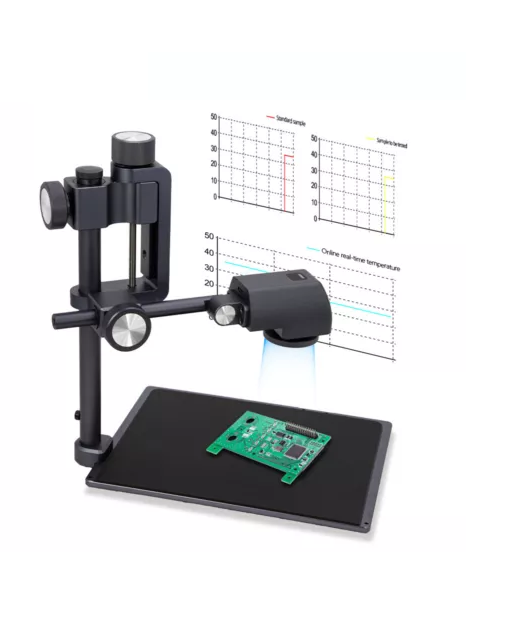

VICTOR 380J ເຄື່ອງວິເຄາະຄວາມຮ້ອນ 3D (260*200, -10 ~120°C)

Lens parameter

Resolution: 260*200

Frame rate: 25Hz

NETD: 70mK 25℃

Field of view: 34.4 horizontal,25.8 vertical

Lens: 4mm adjustable focus lens

Temperature range: -10~120℃

Precision: 士5℃ or ±5%

Interface

Powered by: DC5V(USB Type-C)

Switch:

Power on in 1 second

power off in 3 seconds

Connection method: USB

Physical value

Size: Standard configuration: 220*172*241mm

Optional: split double, bottom plate: 346*220mm, extended support rod 341mm

Weight:

Standard configuration: 1.1kg

Optional accessories: 0.5kg

Surroundings

Operating temperature: -10℃~55℃

Working humidity: <95%

Software and hardware

System: Win10/Win7

Computer: i3 or higher processor 4G RAM

Renew: Connect to the Internet formanual or automatic updates
