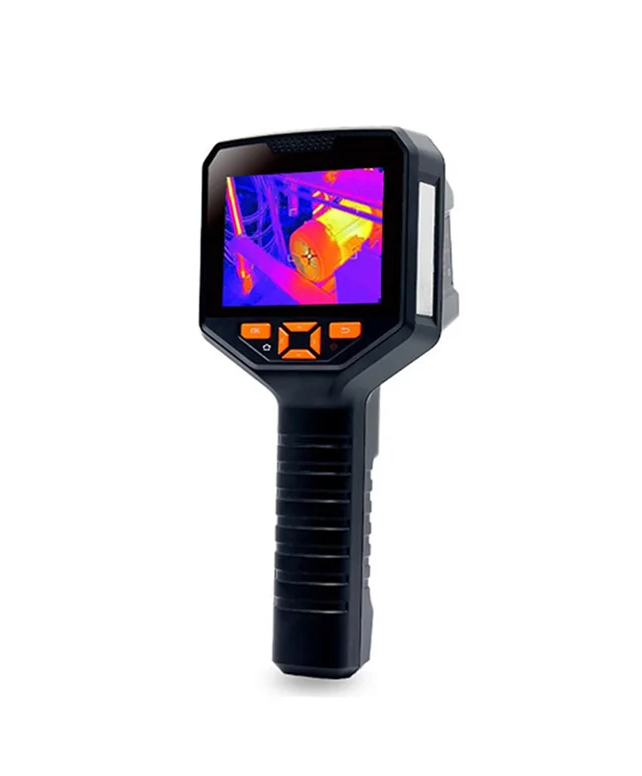

VICTOR 360S ກ້ອງຖ່າຍພາບຄວາມຮ້ອນ (320x240, 8~14um)

Resolving power: 320x240

Working band: 8~14um

Frame rate: 9Hz

NETD: 70mK at 25℃

Field of view angle: Horizontal 344, vertical 25.8

Lens: 6.5mm

Measuring range: Check temperature -10℃~45℃

Temperature measurement accuracy: 2℃ or ±2%

Temperature measurement: Supports temperature measurement of the highest point, lowest point, and center point in the entire screen, as well as temperature measurement in the area

Color palette: Enhance iron red, white heat, black heat, iron red, rainbow, red heat, cold blue, etc

Resolving power: 640x480

Frame rate: 25Hz

LED fill light: √

Screen size: 3.5 inches

Image mode: Edge fusion, overlay fusion, picture in picture, single infrared, single visible light

Language: Supports Simplified Chinese, Traditional Chinese, English, French, Spanish, Russian, Arabic, Japanese, and Korean

Working hours: 5000mAH high capacity battery, can be used for approximately 4 hours at 25 ℃ environment

Charging: Built in battery, recommended to use a 2A or higher universal USB charger

WiFi: Supports data transfer for Android App and PC software

Working temperature: -20C~+60°C

Storage temperature: -40C~+85C

Waterproof and dustproof: IP54

Product size: 230mm x 100mm x 90m

Capacity: Built in memory, approximately 6.6GB usable, capable of storing over 20000 images

Image storage mode: Three photo storage (infrared thermal imaging, visible light, and working state photos)

File format: TIFF format, supporting full range temperature analysis in the background

Data and charging interface: USB Type-C (supports charging and data transfer)

Analysis software: Computer analysis system can analyze and capture images

The mobile analysis system can analyze and capture images (currently only supports Android systems)
