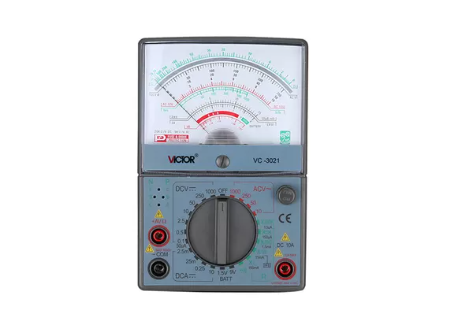

VICTOR 3021 ອະນາລັອກ Multimeter (10ADC, 1000VDC/AC)
Drop shock proof: Taut-band structure is adopted in the meter section. The meter section is designed to withstand shock.
Circuit protection: The circuit is protected by fuse even when voltage of up to AC 230V is impressed on each range for 5 seconds.
Internal battery: R6 (IEC) or UM-3 1.5V×2
Internal fuse: 0.5A/250V 5.2mm dia ×20mm
Standard calibration temp
And humidity range: 23±2℃ 45-75% RH
Operating temperature and
humidity range.: 0-40℃, 80%RH max. No condensation
Withstand voltage: 3KV AC(1 min) between input terminal and case
DCV :
0.1V : 士5% fs
0.5V/2.5V/10V/50V/250V/1000V : 士3% fs
ACV :
10V/50V/250V/1000V : 士4% fs
DCA : 50uA/2.5mA/25mA/0.25A/10A : 士3% fs
Ω :
2kΩ 20kΩ/200kΩ/2MΩ : 士3%
200MΩ : 士5%
dB :
0~ 150mA (x1)
0~ 15mA (x10)
0~ 15mA (x1k)
0~ 1.5uA (x100k)
hFE : 1000 (x10)
Dimensions and weight: 150×100×38mm approx. 300g
Accessories: Instruction manual, Test leads.
