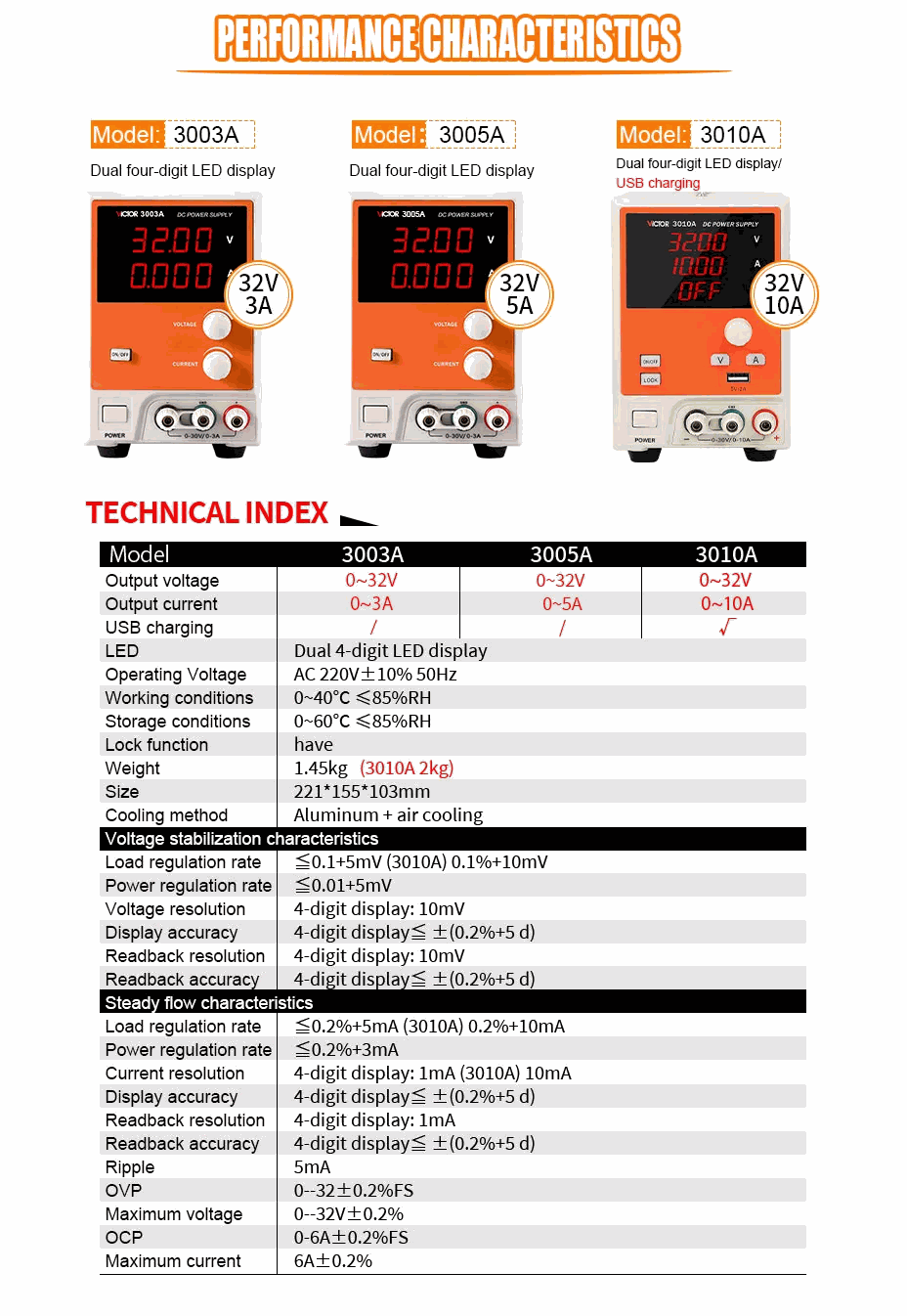

Output voltage: 0~32V
Output current: 0~3A
USB charging:/
LED: Dual 4-digit LED display
Operating Voltage: AC 220V+10% 50Hz
Working conditions: 0~40℃≤85%RH
Storage conditions: 0~60℃≤85%RH
Lock function: have
Weight: 1.45kg
Size: 221*155*103mm
Cooling method: Aluminum+ air cooling
Voltage stabilization characteristics
Load regulation rate: ≤0.1%+5mV
Power regulation rate:≤0.01+5mV
Voltage resolution: 4-digit display: 10mV
Display accuracy: 4-digit display≤±(0.2%+5 d)
Readback resolution: 4-digit display: 10mV
Readback accuracy: 4-digit display≤ ±(0.2%+5 d)
Steady flow characteristics
Load regulation rate: ≤0.2%+5mA
Power regulation rate: ≤0.2%+3mA
Current resolution: 4-digit display: 1mA
Display accuracy: 4-digit display≤±(0.2%+5 d)
Readback resolution: 4-digit display: 1mA
Readback accuracy: 4-digit display≤ ±(0.2%+5 d)
Ripple: 5mA
OVP: 0--32士0.2%FS
Maximum voltage: 0--32V±0.2%
OCP: 0-6A±0.2%FS
Maximum current: 6A±0.2%
Datasheet
