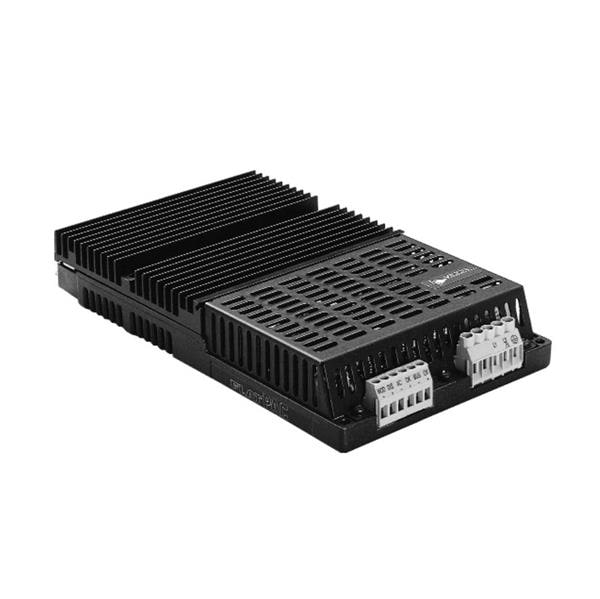

Vicor VI-PF22-CUU FlatPAC ອັດຕະໂນມັດປ່ຽນຂະໜາດ AC-DC VI-PF22-CUU

Width: 124.46 mm

Height: 34.798 mm

Length: 218.44 mm

Industry: Industrial

Approvals: CSA, FCC, TUV, UL, VDE

Compliance: CSA, FCC, TUV, UL, VDE

Efficiency: 80 % to 90 %

Output Power: 200 W

REACH - SVHC: Details

Input Voltage: 90 VAC to 135 VAC, 180 VAC to 270 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 4.3 kV

Number of Outputs: 2 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 40 A

Output Current-Channel 2: 40 A

Output Voltage-Channel 1: 15 VDC

Output Voltage-Channel 2: 15 VDC

Operating Temperature Range: 0 C to + 85 C

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: 0 C
