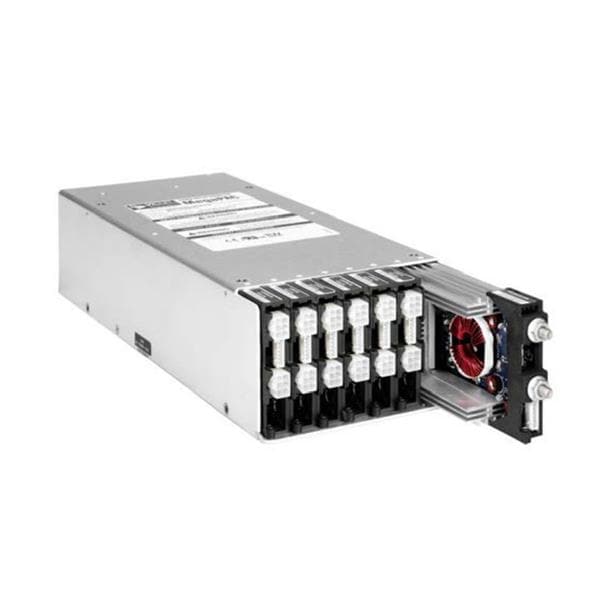

Vicor MP1-749425-G ພາວເອັບຕ໌ຄໍເຣັກທິດ PFC Megapac Std RoHS

Width: 152.4 mm

Height: 85.6 mm

Length: 396.2 mm

Industry: Industrial

Approvals: CE Mark, cTUVus, cURus

Compliance: CE Mark, cTUVus, cURus

Efficiency: 80 %

Unit Weight: 3.724 kg

Output Power: 1.6 kW

Input Voltage: 85 VAC to 264 VAC, 100 VDC to 380 VDC

Mounting Style: Chassis

Input Frequency: 47 Hz to 500 Hz

Load Regulation: 0.1 %

Isolation Voltage: 4.242 kVrms

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Operating Temperature Range: - 20 C to + 40 C

Maximum Operating Temperature: + 40 C

Minimum Operating Temperature: - 20 C
