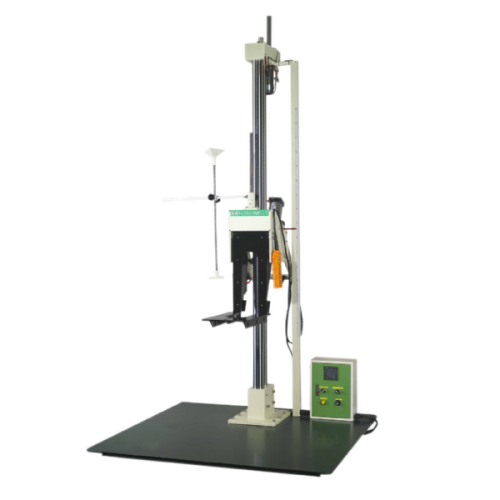

Vibsource VS-1018 Single Arm Pneumatic Drop ເຄື່ອງທົດສອບ (65Kg)

Option1: Clip-on fixture designed specifically for hand-held device testing

Option2: digital control box, automatic lift control, can solve the problem of error resulted from observation of indicator more than 160cm test

The swing arm system is controlled by the air pressure for fast and precise positioning

Maximum load: 65Kg

Test height 30-160cm

Swing arm platform size: 29x50cm

Power requirements: 220V 50/60Hz single-phase

Air pressure requires more than 5kg/cm2

Lifting method: using motor drive, height can be adjusted
