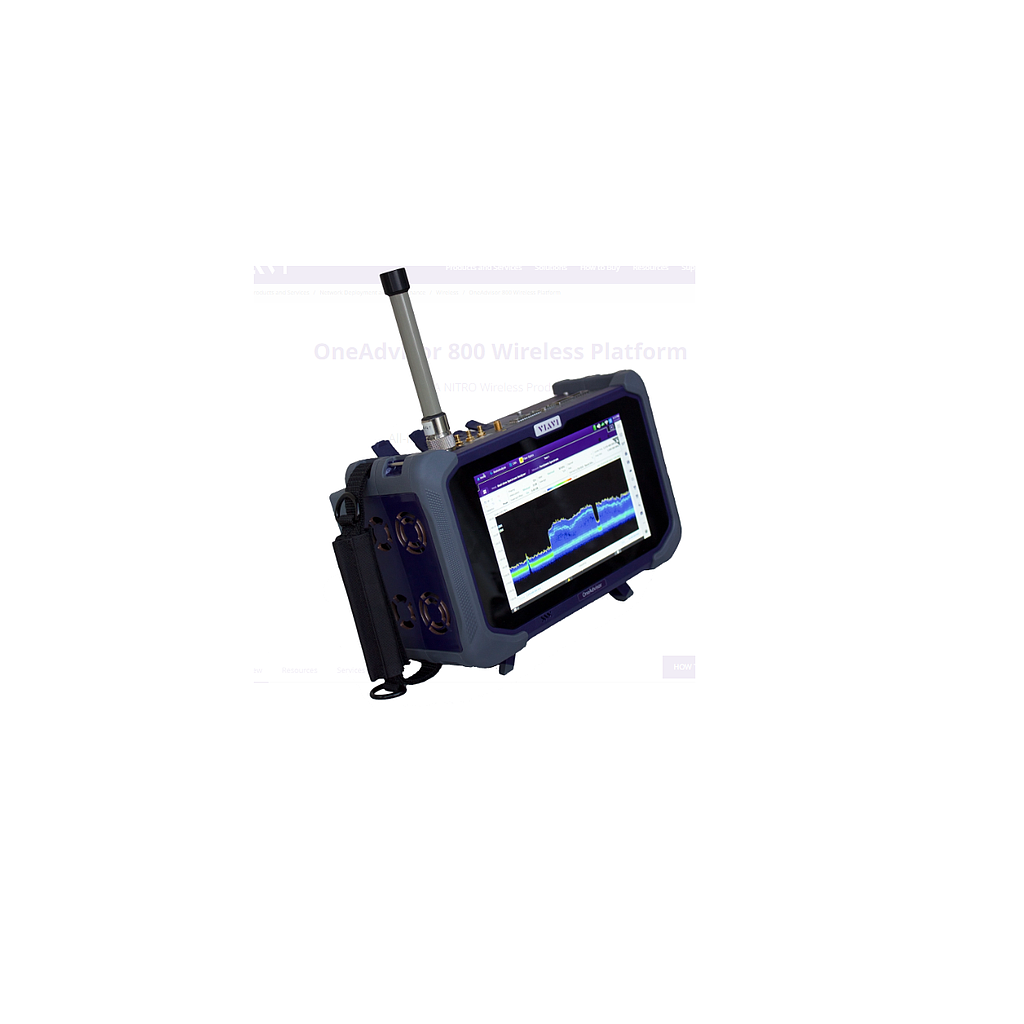

Viavi OneAdvisor 800 ແພດຟອມບໍ່ມີສາຍ
Inputs and Outputs
USB: 2x USB 2.0 Host
Memory Card: 1x micro SD
LAN: RJ-45, 1000 Base-T
Audio: Built-in speaker 1x USB-C for Audio output
Display: 8”, 1280 x 800 resolution
Power
Connector: Rectangular DC Jack
External DC Input: 19 VDC
Power consumption: Mainframe: 10.8W (w/70% brightness setting)
Battery
Type: 14.4 V, 6800 mAh (Lithium ion)
Operating time: MF (mainframe) only: > 8hrs
Charging time:
100 % charging
Standard (one battery): > 2:2 hrs
Up to 80 % charging
Standard (one battery): > 1:40 hrs
Charging temperature: 0 to 45°C (32 to 113°F), ≤ 85% RH
Discharging temperature: -20 to 55°C (-4 to 131°F), ≤ 85% RH
Storage temperature: -20 to 60°C (-4 to 140°F)
Operating Temperature
0 to 40°C (32 to 104°F) AC Power with battery charging
-10 to 55°C (14 to 131°F) Battery discharging condition
Storage temperature: -20 to 60 °C (-4 to 140 °F)
Maximum humidity: 95% RH (noncondensing)
Memory
Internal: 6.2 GB total, shared by system memory
External:
Micro-SD: up to 32GB
USB flash memory:limited by size of theflash drive
Supported file system: FAT, FAT3, ext4
Size and weight (Mainframe)
Weight: 2.0 kg (4.4 lb) without module (including battery)
Size (W x H x D): 270 x 170 x 60 mm (10.6 x 6.7 x 2.3 in) without module
Size and weight (Fiber module receptacle)
Weight: 0.8 kg (1.7 lb) without test
module
Size (W x H x D): 270 x 170 x 50 mm (10.6 x 6.7 x 2 in)
Built-In hardware option
ONA-PMVFL
Power Meter
Power Level: +10 to - 60 dBm
Calibrated wavelength: 850, 1310, 1550nm
Connector type: Universal push/pull (UPP)
Visual Fault Locator
Wavelength: 650 nm +/- 15nm
Output power level: < 1mW
Laser safety: Class 2 laser
