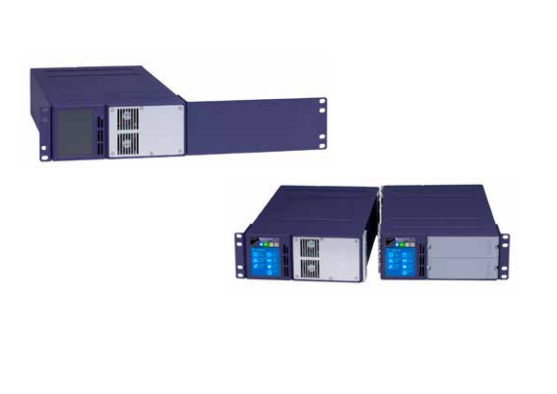

Viavi MAP-220CXR-A ເຄື່ອງຫຼັກ LightDirect Chassis (2U, two-slot)
Capacity: 2 modules
Controller:
CPU: ARM AM335x
Operating System: Linux
Internal Storage: 4GB user flash storage
Interfaces:
Remote Interface: USB, GPIB (optional), Ethernet 10/100/1000BASE-T
USB Device Capability: Mouse, keyboard, memory stick
Display: Internal display
Ports:
USB Host Ports: 2 rear
LAN: 1 rear
GPIB: 1 rear (optional)
Automation:
Driver Type: IVI-compliant
Driver Compatibility: LabVIEW, LabWindows, Visual C++, Visual Basic
Accessibility: Multi-user sharing support
Electrical and Safety:
Power: 100 to 240 V AC, 50/60 Hz, auto-switching (field-replaceable as part of the power supply controller module)
Power Consumption: 160 W
Local Interlock: Software controlled
Mechanical and Environment:
Rack-mount Kit: Included for MAP-220CX-A or MAP-220CXR-A; may be ordered separately to convert a benchtop chassis into a rack-mount chassis
Dimensions (W × H × D): 220 × 88 × 387 mm (8.6 × 3.4 × 15.2 in)
Weight: Rack-mount 7 kg (15.4 lb); Benchtop 8 kg (17.6 lb)
Operating Temperature: 0 to 50 °C
Storage Temperature: –30 to 60 °C
Relative Humidity: 5 % to 85 %, non-condensing
Display: 3.5-inch color screen
Resolution: 320 × 240
