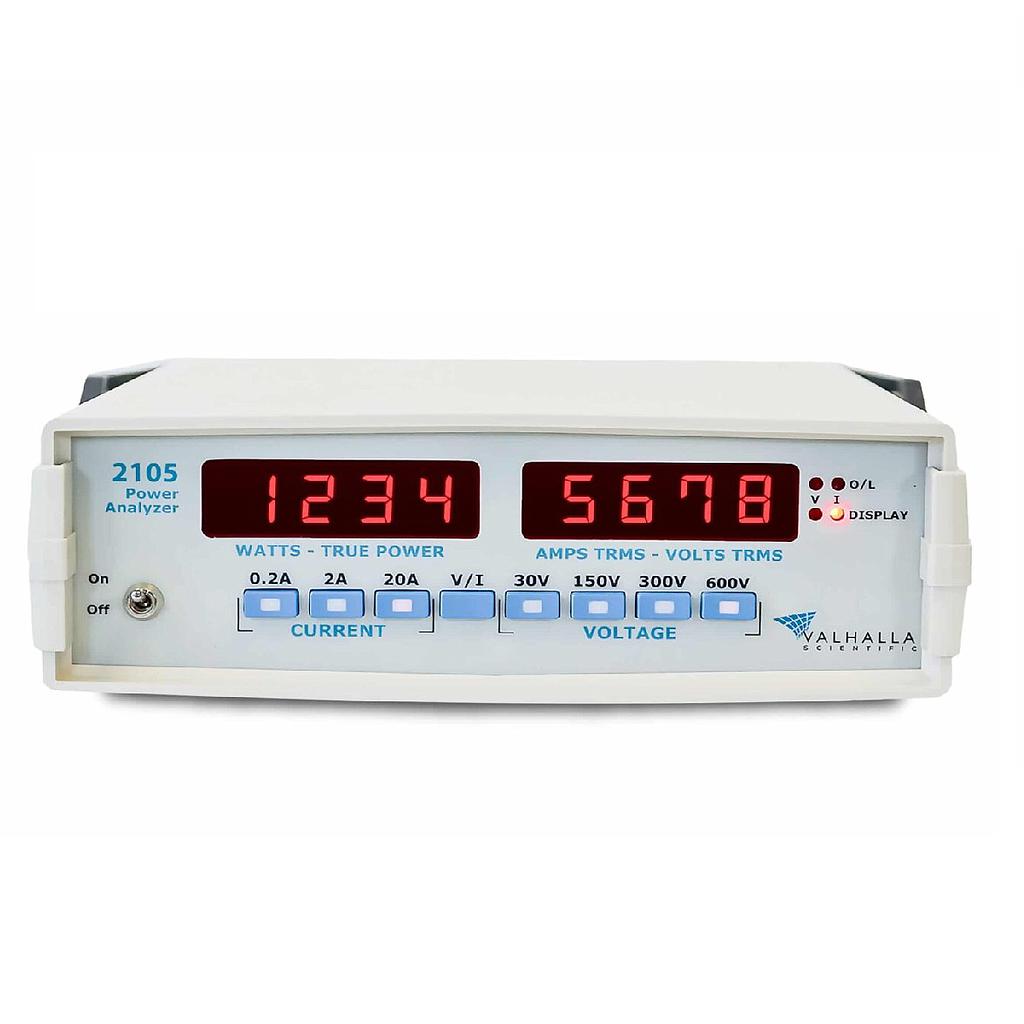

Valhalla Scientific 2105 ເຄື່ອງວິເຄາະພະລັງງານ (600VDC, DC~20kHz)
Voltage range: 30V~600V
DC~20kHz
Crest Factor Response: 50:1 for minimum RMS input, linearly decreasing to 2.5:1 for full-scale RMS input
Minimum Inputs: 5% of voltage and current ranges for specified accuracies
Maximum Voltage Input (without damage): 600VDC or RMS, ±1500VPEAK
Voltage Impedance: 600kΩ
Current Shunt Impedance: 0.01Ω
Max Common Mode: ±1500V peak, neutral to earth
Peak Indicators: Illuminate at 2.5 x full scale for voltage and current
Temperature Coefficient: ±0.025% of range per °C from 0°C-20°C and 30°C-50°C
Power Requirements: 105-125Vac or 210-250Vac, 50-400Hz; 25VA maximum
Operating Temperature Range: 0°C~50°C; -20°C~70°C Storage
Humidity: 70% RH max @ 40°C (non-condensing)
Dimensions: 25cmWx27cmDx8cmH(10”Wx10.5”Dx3”H)
Weight: 3.5lbs/1.7kg net
