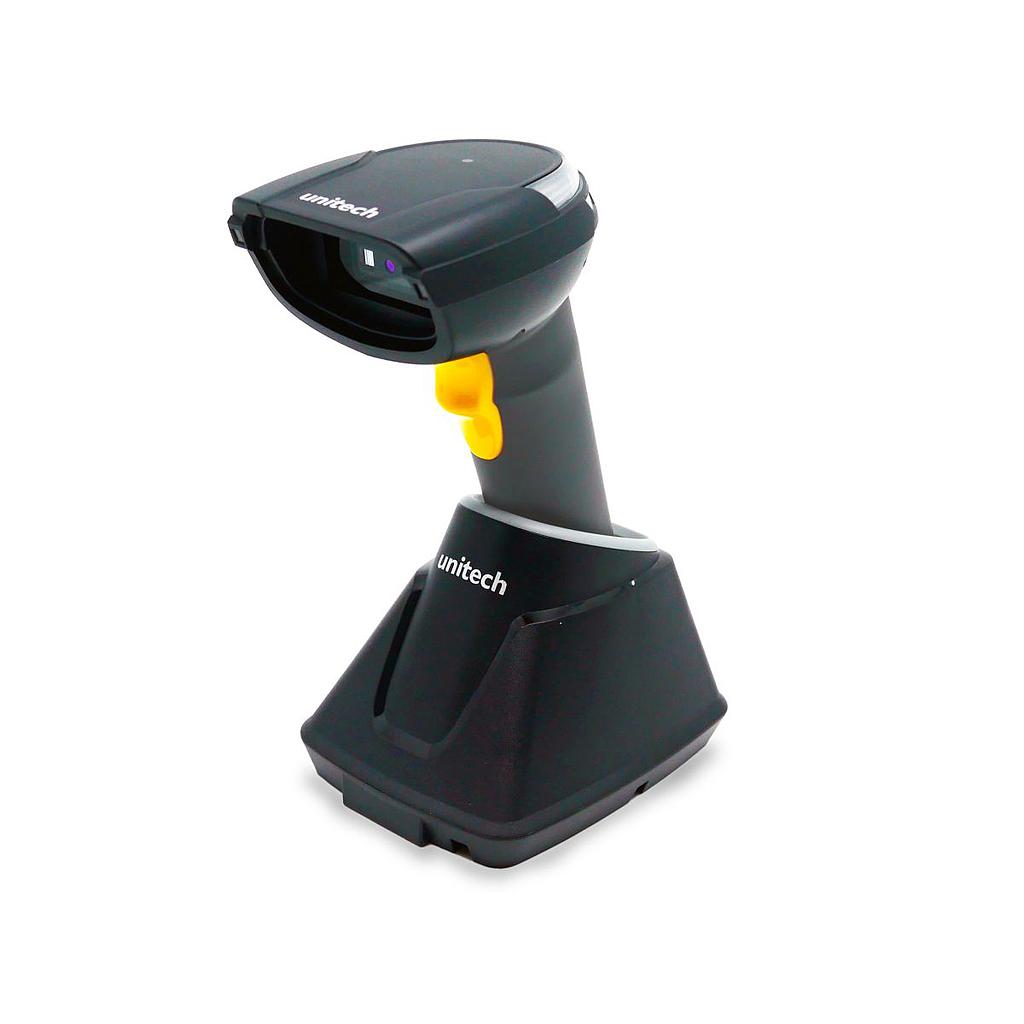

Unitech MS852B plus ຕູ້ສະແກນຮູບພາບ 2D ບລູທູດປະສິດທິພາບສູງ (1D 3 mil/ 0.075mm)

Image Sensor: Global Shutter 1280 x 800

Aiming Element: Red Laser

Illumination: White LED (Risk Group Exempt)

Skew Angle: ±60°

Roll Angle: 0 - 360°

Optical Resolution: 1D 3 mil / 0.075 mm

Depth of Field (DOF PCS = 80%)

Symbology / X-DIM | Near | Far

13 mil UPC | 1.34 in / 3.4 cm | 22.5 in / 57.3 cm

5 mil Code 39 | 2.76 in / 7 cm | 11.85 in / 30.1 cm

10 mil Code 39 | 1.14 in / 2.9 cm | 20.3 in / 51.7 cm

20 mil Code 39 | 1.38 in / 3.5 cm | 31.5 in / 80 cm

15 mil Code 128 | 1.34 in / 3.4 cm | 25.6 in / 65 cm

10 mil Data Matrix | 2.84 in / 7.2 cm | 11.7 in / 29.7 cm

6.7 mil PDF417 | 3.3 in / 8.4 cm | 9.6 in / 24.4 cm

15 mil QR Code | 1.3 in / 3.3 cm | 15.35 in / 39 cm

Communication: Bluetooth LE V4.2 & Bluetooth 2.1 + EDR, Dual-Mode Class 1

Supported Host Interfaces: USB / RS232

Dimensions: 87.8 (L) x 71.6 (W) x 177.7 (H) mm

Weight: 213 g (without stand)

Trigger Switch Life: 10 million actuations

Barcodes Supported: 1D, 2D, OCR

Indicators: LED & Buzzer & Vibration

ESD Protection: Functional after 8 kV Contact and 15 kV Air Discharge

Mechanical Shock: 2.1 m drop on concrete (scanner only)

Operating Temperature: -10°C to 50°C (14°F to 122°F)

Storage Temperature: -40°C to +70°C (-40°F to +158°F)

Ingress Protection: IP42

Accessories (Optional):

■ USB Cable (PN# 1550-905890G)

■ RS232 Cable (PN# 1550-905891G)

■ USB Type-C Cable (PN# 1550-905892G)

■ Single Slot Charging Cradle (PN# 5000-900064G)

■ Battery Pack (PN# 1400-900055G)

Certifications: CE, FCC, BSMI, VCCI, NCC, TELEC, BQB

Memory: 7.5 MB (up to 590,000 barcodes)

Key: Trigger Key

Wireless Coverage: 100 m (line of sight)

Interface Modes: Serial Port Profile & HID Profile

Stand Dimensions: 120.6 (L) x 88.7 (W) x 86.0 (H) mm

Battery Type: Rechargeable and Replaceable Battery Pack

Battery Capacity: 2850 mAh

Charging Time: < 6.5 hours

Operating Time: >25 hours (up to 60,000 scans at 1 scan/sec)
