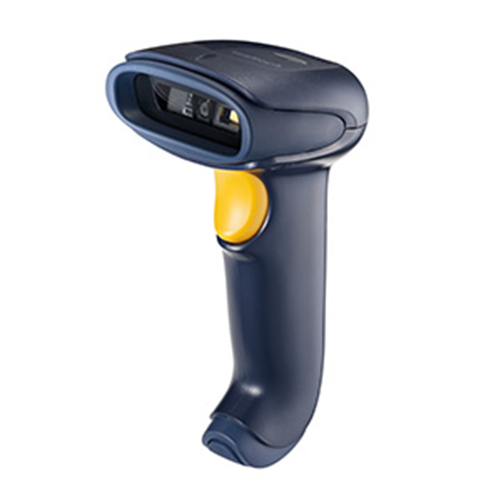

Unitech MS832 ຕູ້ສະແກນຮູບພາບ 2D (640 x 480 pixel; 5mil/ 6.7mil)
Image Sensor: Image Sensor, 640 x 480 pixels
Aiming Element: Red LED 617 nm
Illumination: Visible White LED
Skew Angle: ±70°
Roll Angle: 0 - 360°
Optical Resolution: 5 mil (Code 39), 6.7 mil (PDF417)
Depth of Field (DOF)
1D Codes
• Code 39, 5 mil: 33 – 95 mm (1.3 – 3.7 in.)
• UPC-A, 13 mil: 32 – 255 mm (1.3 – 10.0 in.)
• Code 39, 20 mil: 35 – 355 mm (1.4 – 14.0 in.)
2D Codes
• PDF417, 6.7 mil: 30 – 95 mm (1.2 – 3.7 in.)
• Data Matrix, 10 mil: 30 – 100 mm (1.2 – 3.9 in.)
• Data Matrix, 15 mil: 21 – 162 mm (0.8 – 6.4 in.)
• QR Code, 20 mil: 23 – 200 mm (0.9 – 7.9 in.)
Interface: USB
Dimensions: 170 x 66 x 85 mm
Weight: 120 g (without cable)
Trigger Switch Life: 10 million actuations
Barcode Types: 1D, 2D
Operating Voltage: 4 VDC to 5 VDC
Power Consumption: Operating Mode: 2 W (400 mA @ 5V); Typical Standby Mode: 0.45 W (90 mA @ 5V)
Indicators: Buzzer, LED
ESD Protection: Functional after 8 kV Contact and 12 kV Air Discharge
Drop Resistance: 1 m on concrete (scanner only)
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 60°C
Protection Rating: IP40
Accessories (Optional): Hands-free Stand (optional); Interface Cable
Certifications: CE, FCC, BSMI, VCCI
Speed: Motion Tolerance: 100 mm per second (UPC-A 13 mil)
