Digital Gas Transmitter with 4-20-mA industrial standard output
Operating voltage: 18 to 30 VDC
Feature: Fixed single gas sensor Enclosure: Flameproof,SS-316
Cable entries: 1/2” NPT (2 entries)/ 3/4" NPT (2 entries)
Relays: 1 potential free contact (Optional)
Certifications: ATEX/IECEX
Option Sensor
Datasheet
|
Model No. |
Description |
Ordering Code |
|
KwikSense Pro |
Smart Digital Gas Transmitter with 4-20-mA + MODBUS
output Operating voltage: 18
to 30 VDC Feature:Swappable smart
sensor Enclosure: Flameproof,LM-6 Cable entries: 1/2” NPT (2
entries)/ 3/4" NPT (2
entries) Relays: 3 potential free
contacts Certifications: ATEX/IECEX, |
KS1000A1 |
|
KwikSense Pro with SIL |
Smart Digital Gas Transmitter with 4-20-mA
+ MODBUS output Operating voltage: 18 to 30 VDC Feature:Swappable smart sensor Enclosure: Flameproof,LM-6 Cable entries: 1/2”
NPT (2 entries)/ 3/4" NPT (2 entries) Relays: 3 potential free contacts Certifications: ATEX/IECEX, SIL2, |
KS1000A2 |
|
KwikSense-SS |
Smart Digital Gas Transmitter with 4-20-mA + MODBUS
output Operating voltage: 18 to 30 VDC Feature: Swappable
smart sensor Enclosure: Flameproof,SS-316 Cable entries: 1/2” NPT (2
entries)/ 3/4" NPT (2
entries) Relays: 3 potential free
contacts Certifications: ATEX/IECEX, SIL2, INMETRO, MED |
KS00S0A2 |
|

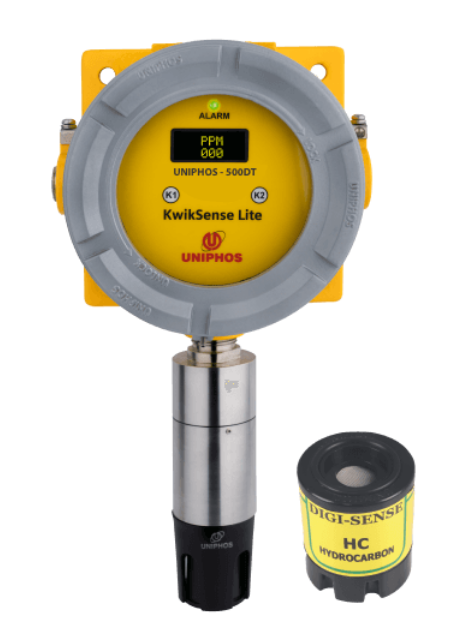

KwikSense Lite |
Digital Gas
Transmitter with 4-20-mA industrial standard output Operating voltage: 18 to 30 VDC Feature: Fixed single gas sensor Enclosure: Flameproof,LM-6 Cable entries: 1/2”
NPT (2 entries)/ 3/4" NPT (2 entries) Relays: 1 potential free contact
(Optional) Certifications: ATEX/IECEX |
KL0100A1 |
|
KwikSense Lite-SS |
Digital Gas Transmitter with 4-20-mA industrial
standard output Operating voltage:
18 to 30 VDC Feature: Fixed
single gas sensor Enclosure: Flameproof,SS-316 Cable entries: 1/2” NPT (2
entries)/ 3/4" NPT (2
entries) Relays: 1 potential free
contact (Optional) Certifications: ATEX/IECEX |
KL01S0A1 |
|
KwikSense RD |
Smart Digital Remote Display with 4-20-mA + MODBUS
Operating voltage: 18 to 30 VDC Enclosure: Flameproof,LM-6 Cable entries: 1/2” NPT (2 entries) & 3/4" NPT
(1 entry) Relays: 3
potential free contacts Certifications: ATEX/IECEX, SIL2, INMETRO |
KR0004A1 |
|
KwikSense RD-SS |
Smart Digital
Remote Display with 4-20-mA + MODBUS Operating voltage: 18 to 30 VDC Enclosure: Flameproof,SS-316 Cable entries: 1/2” NPT (2
entries) & 3/4" NPT (1 entry) Relays: 3 potential free contacts Certifications: ATEX/IECEX, SIL2, INMETRO |
KR00S4A1 |
Option Sensor
|
Gas |
Ordering Code |
Range / Resolution |
Sensor Technology |
|
Acetic Acid |
SSA0074A |
0 - 30 ppm |
EC |
|
0.1 ppm |
|||
|
Acetylene |
SSA0099C |
0 - 100% LEL |
Pellister |
|
1% LEL |
|||
|
Ammonia |
SSA0082A |
0 - 100 ppm |
EC |
|
1 ppm |
|||
|
Ammonia |
SSA0082B |
0 - 1000 ppm |
EC |
|
1 ppm |
|||
|
Butadiene |
SSA0099V |
0-50 ppm |
PID |
|
1 ppm |
|||
|
Butadiene |
SSA0099S |
0 - 100% LEL |
NDIR |
|
1% LEL |
|||
|
Bromine* |
SSA0061A |
0 - 20 ppm |
EC |
|
0.1 ppm |
|||
|
Butanol |
SSA0099D |
0 - 100% LEL |
Pellister |
|
1% LEL |
|||
|
Carbon Dioxide |
SSA0025A |
0 - 5% v/v. |
NDIR |
|
0.01% v/v. |
|||
|
Carbon Dioxide |
SSA0025B |
0 - 100% v/v |
NDIR |
|
1% v/v |
|||
|
Carbon disulphide |
SSA0021A |
0 - 50 ppm |
PID |
|
0.1 ppm |
|||
|
Carbon disulphide |
SSA0021B |
0 - 100 ppm |
EC |
|
1 ppm |
|||
|
Carbon Monoxide |
SSA0020D |
0 - 100 ppm |
EC |
|
1 ppm |
|||
|
Carbon Monoxide |
SSA0020E |
0 - 200 ppm |
EC |
|
1 ppm |
|||
|
Carbon Monoxide |
SSA0020F |
0 - 300 ppm |
EC |
|
1 ppm |
|||
|
Carbon Monoxide |
SSA0020B |
0 - 500 ppm |
EC |
|
1 ppm |
|||
|
Carbon Monoxide |
SSA0020A |
0 - 1000 ppm |
EC |
|
1 ppm |
|||
|
Carbon Monoxide |
SSA0020C |
0 - 2000 ppm |
EC |
|
1 ppm |
|||
|
Chlorine |
SSA0060B |
0-10 PPM |
EC |
|
0.1 PPM |
|||
|
Chlorine |
SSA0060A |
0 - 20 ppm |
EC |
|
0.1 ppm |
|||
|
Chlorine Dioxide |
SSA0062A |
0-1 PPM |
EC |
|
0.1 PPM |
|||
|
Ethylene |
SSA0097A |
0 - 1500 ppm |
EC |
|
5 ppm |
|||
|
ETO** |
SSA0083A |
0 - 20 ppm |
EC |
|
0.1 ppm |
|||
|
ETO** |
SSA0083B |
0 - 100 ppm |
EC |
|
1 ppm |
|||
|
Formaldehyde |
SSA0098A |
0 - 10 ppm |
EC |
|
0.1 ppm |
|||
|
HC (Methane) |
SSA0099A |
0 - 100% LEL |
Pellister |
|
1% LEL |
|||
|
HC (Methane) |
SSA0099G |
500 - 10000 ppm |
Solid State |
|
10 ppm |
|||
|
HC(MPS) |
Please Ask |
0 - 100% LEL |
MPS |
|
1% LEL |
|||
|
HC |
SSA0099H |
50 - 1000 ppm |
Solid State |
|
1 ppm |
|
Gas |
Ordering Code |
Range / Resolution |
Sensor Technology |
|
|
Hydrogen
(IIC) |
SSA0090C |
0 - 100% LEL |
Pellister |
|
|
1% LEL |
|
|||
|
Hydrogen (IIC) |
SSA0090A |
0 - 1000 ppm |
EC |
|
|
1 ppm |
|
|||
|
Hydrogen (IIC) |
SSA0090B |
0 - 100% LEL |
EC |
|
|
1% LEL |
|
|||
|
Hydro Carbon |
SSA0099H |
50 - 1000 ppm |
Solid State |
|
|
1 ppm |
|
|||
|
Hydrogen Chloride* |
SSA0070A |
0 - 20 ppm |
EC |
|
|
0.1 ppm |
|
|||
|
Hydrogen Cyanide |
SSA0075B |
0 - 30 ppm |
EC |
|
|
0.1 ppm |
|
|||
|
Hydrogen Cyanide |
SSA0075A |
0 - 100 ppm |
EC |
|
|
1 ppm |
|
|||
|
Hydrogen Fluoride* |
SSA0072A |
0 - 10 ppm |
EC |
|
|
0.1 ppm |
|
|||
|
Hydrogen Sulphide |
SSA0030B |
0-20 ppm |
EC |
|
|
1 ppm |
|
|||
|
Hydrogen Sulphide |
SSA0030A |
0 - 100 ppm |
EC |
|
|
1 ppm |
|
|||
|
Iso-Butane |
SSA0099O |
0 - 100% LEL |
Pellistor |
|
|
1% LEL |
|
|||
|
LPG |
SSA0099B |
0 - 100% LEL |
Pellister |
|
|
1% LEL |
|
|||
|
LPG |
SSA0099T |
0 - 100% LEL |
NDIR |
|
|
1% LEL |
|
|||
|
MEK |
SSA0099P |
0 - 100% LEL |
NDIR |
|
|
1% LEL |
|
|||
|
Methane |
SSA0099E |
0 - 100% LEL |
NDIR |
|
|
1% LEL |
|
|||
|
Methane |
SSA0099F |
0 - 100% v/v |
NDIR |
|
|
1% v/v |
|
|||
|
Methanol |
SSA0099K |
0 - 100 ppm |
EC |
|
|
1 ppm |
|
|||
|
Methanol |
SSA0099M |
0 - 500 ppm |
EC |
|
|
1 ppm |
|
|||
|
Methanol |
SSA0099U |
0 - 100% LEL |
Pellister |
|
|
1% LEL |
|
|||
|
Mercaptan* |
SSA0035A |
0 - 20 ppm |
EC |
|
|
0.1 ppm |
|
|||
|
Methyl Bromide |
SSA0051A |
0 - 200 ppm |
Solid State |
|
|
1 ppm |
|
|||
|
Mono Methyl
Amine |
SSA0087A |
0 -100 ppm |
EC |
|
|
1 ppm |
|
|||
|
N-Butane |
SSA0099N |
0 - 100% LEL |
Pellister |
|
|
1% LEL |
|
|||
|
Methanol** |
Please
Ask |
0 - 100 ppm |
EC |
|
|
1 ppm |
|
|||
|
Nitrogen Dioxide |
SS00081A |
0 - 20 ppm |
EC |
|
|
0.1 ppm |
|
|||
|
Oxygen |
SSA0010A |
0 - 25% v/v. |
EC |
|
|
0.1% v/v. |
|
|||
|
Ozone* |
SSA0015A |
0-1 ppm |
EC |
|
|
0.01 ppm |
|
|||
|
PCl3* |
SS00071A |
0-10 PPM |
EC |
|
|
1 PPM |
|
|||
|
Phosgene* |
SS00055A |
0 - 1 ppm |
EC |
|
|
0.01 ppm |
|
|||
|
|
||||
|
Gas |
Ordering Code |
Range / Resolution |
Sensor Technology |
|
Phosphine |
SSA0055A |
0 - 10 ppm |
EC |
|
0.01 ppm |
|||
|
Phosphine |
SSA0050B |
0 - 20 ppm |
EC |
|
0.1 ppm |
|||
|
Phosphine |
SSA0050C |
0 - 20 ppm |
EC |
|
0.01 ppm |
|||
|
Phosphine |
SS00050E |
0 - 2000 ppm |
EC |
|
1 ppm |
|||
|
Phosphine |
SSA0050D |
0 - 5000 ppm |
EC |
|
10 ppm |
|||
|
POCl3* |
SS00073A |
0-20 PPM |
EC |
|
1 PPM |
|||
|
Propane |
SSA0099J |
0 - 100% LEL |
Pellister |
|
1% LEL |
|||
|
Propane |
SSA0099I |
0 - 100% LEL |
NDIR |
|
1% LEL |
|||
|
Propylene |
SSA0099L |
0-2 % v/v |
NDIR |
|
0.01% v/v |
|||
|
Silane |
SSA0053A |
0 - 15 ppm |
EC |
|
1 ppm |
|||
|
Sulphur Dioxide |
SSA0040A |
0 - 20 ppm |
EC |
|
0.1 ppm |
|||
|
Vinyl Chloride (Vinyl
Chloro Monomer)* |
SSA0022A |
0 - 100 ppm |
EC |
|
1 ppm |
|||
|
VOC (Benzene) |
SSA0100C |
0-20 PPM |
PID |
|
0.1 PPM |
|||
|
VOC (Benzene) |
SSA0100F |
0 - 1000 ppm |
PID |
|
1 ppm |
|||
|
VOC (Isobutylene) |
SSA0100B |
0-40 PPM |
PID |
|
0.1 PPM |
|||
|
VOC (Isobutylene) |
SSA0100E |
0-100 PPM |
PID |
|
1 PPM |
|||
|
VOC (Isobutylene) |
SSA0100A |
0 - 1000 ppm |
PID |
|
1 ppm |
|||
|
VOC (Isobutylene) |
SSA0100D |
0-4000 PPM |
PID |
|
1 PPM |
|||
|
VOC (VCM) |
SSA0100G |
0-100 PPM |
PID |
|
1 PPM |
|
Accessories |
Ordering Code |
|
|
Splash Guard/Rain Shield |
ER003605 |
|
|
Gas Collection Cone |
ER004028 |
|
|
Duct Mounting Kit |
ER004091 |
|
|
Canopy (FRP) |
ER003869 |
|
|
Canopy (Metallic) |
ER001008 |
|
|
Pipe Mounting Kits |
ER004752 |
|
|
Flow Through
Adapter |
EF001557 |
|
|
1/2" NPT Cable
Gand(ATEX) |
ER003957 |
|
|
1/2" NPT Stopper(ATEX) |
EF003904 |
