| Item | Definition | Specs |
| System Parameters | Size | 750(L)x570(W)x890(H)mm |
| Weight | 300kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 0.5kW | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 80/90kV | |
| Max.Power | 200μA | |
| Spot Size | 5μm | |
| Detector | Intensifier | FPD |
| X-ray Coverage | 48mm x 54mm | |
| Resolution | 208Lp/cm | |
| Work Station | Max.Loading Size | 200mm x 200mm |
| Max.Inspection Area | 200mm x 200mm | |
| Oblique Angle Views | 360° rotary fixture (Optional) | |
| X-ray Leakage | <1μSv/h | |

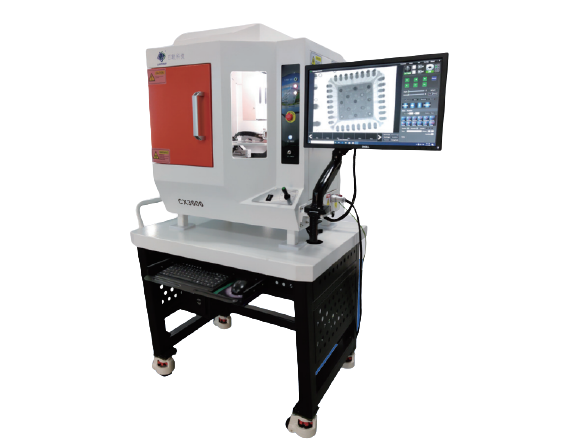

1. 5μm 100kV X-ray tube;
2. Dynamic FPD with high-resolution of 1000×1124;
3. Equipped with 360° rotary fixture to eliminate PoP shadow;
4. The detection area easily positioned by external rocker;
5. Inspection & Analysis of soldering joint and materials inner structure;
6. High safety with seamless lead welding, interlock and emergency button.
