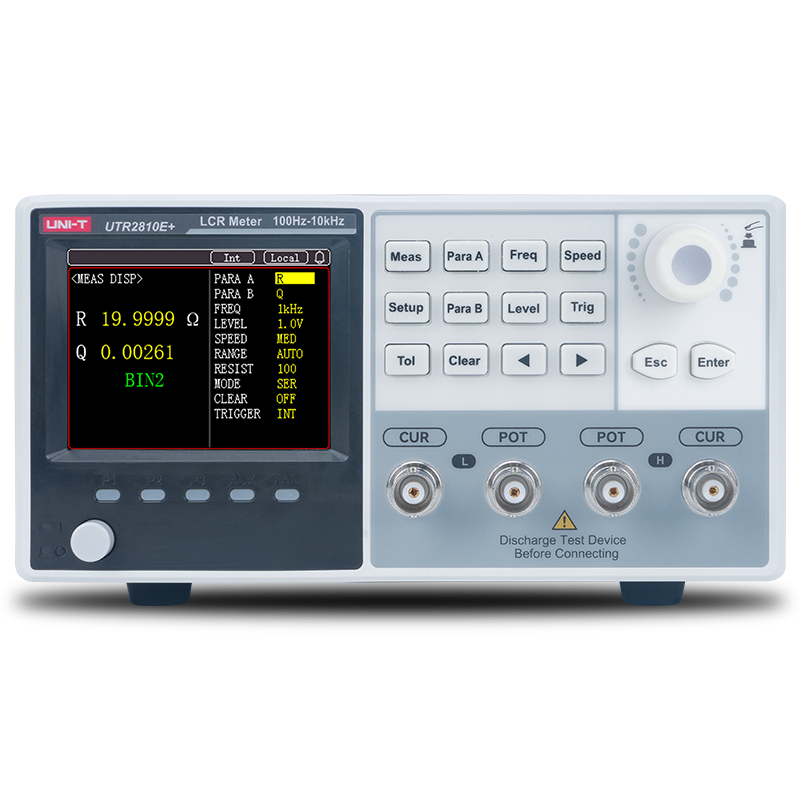

UNI-T UTR2810E+ ມິດເລັກທິດ LCR ດິຈິຕອນ (100Hz,120Hz,1kHz,10kHz)
Test frequency:
Frequency range : 100Hz,120Hz,1kHz,10kHz
Minimum resolution : Four digit display
Accuracy : 0.0002
AC level:
Voltage range : 0.1V,0.3V,1V
Accuracy: ±10%×Set value
Internal resistance of AC source:
Resistance : 30Ω / 100Ω Optional
Output impedance accuracy: ±5%
Measurement parameters : Cs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls-Rs, Ls-Q,Rs-Q, Rp-Q, R-X, Z-θr, Z-θd, Z-D, Z-Q, Auto LCZ
Display range:
R, X, |Z|:0.00001Ω - 99.9999MΩ;
G, B, |Y| :0.01nS - 999.999S;
L:0.00001uH - 9999.99H;
C:0.00001pF - 999.999mF;
D;0.00001 - 9.99999;
Q:0.00001 - 99999.9;
θd: -179.999° - 179.999°;
θr:-3.14159 - 3.14159;
Test speed (mS / time) : Fast: 43ms;Medium speed: 185ms;Slow speed: 350ms
Test end configuration : Open circuit, short circuit, load
Equivalent mode: Series, parallel
Range mode: Auto, hold
Trigger mode : Internal, manual, external(only UTR2810E+), bus UTR2810E+
Mathematical operation : Direct reading, △ ABS, △ %
Comparator : 4-gear sorting, BIN1-BIN3, NG, AUX
Interface : RS232,HANDLER
General Characterisitics:
Power: AC 110V/220V 50/60Hz
Display : 2.8" TFT LCD 240×320
Product size (W×H×D) : 174 mm× 88 mm× 267 mm
Product net weight: 2.15kg
Standard Accessories:
UTR-001:Short circuit board (UTR2810E+):
UTR-L10kE:Kelvin test cable with crocodile clip:
UTR-S100KE:4-wire test box (UTR2810E+):
RS232 Communication cable (UTR2810E+):
