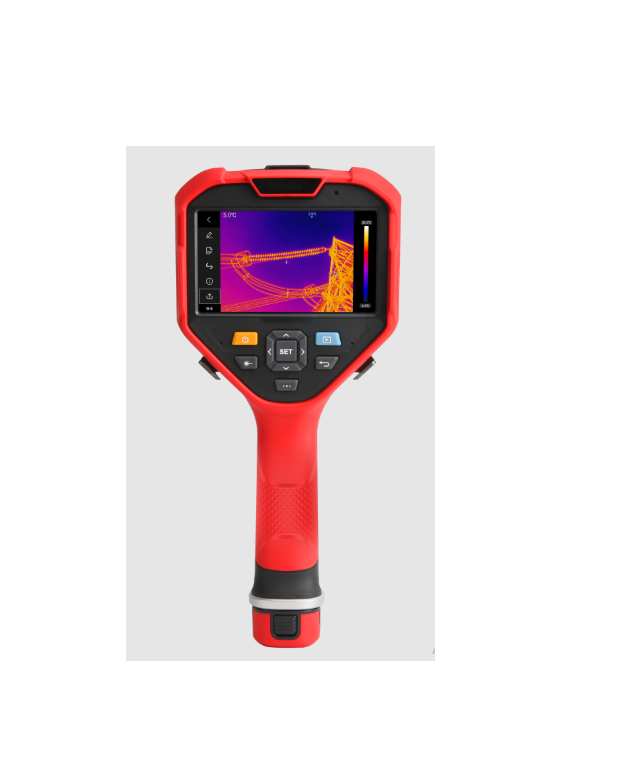

UNI-T UTi760X ອຸປະກອນສະແດງຮູບພາບຄວາມຮ້ອນ Expert Thermal Imager (-20℃～1200℃, 1000℃～2200℃, 1280×1024Pixels)
Display: 5′ IPS Touch (1280×720)
IR resolution(Pixels): 640×512
Super resolution(Pixels): 1280×1024
Spectral range: 7.5～14μm
Pixel size: 12μm
Frame rate: 30Hz
Thermal sensitivity(NETD): 35mK
Focus mode: Continuous AF/Semi-auto Focus/Laser Assisted Focus/Touch AF/Manual Focus
Focusing time: <2s
Lens recognition: ✔
Lens calibration: ✔
Temperature measurement range: Conventional Lens: -20℃～1200℃ High Temp. Lens: 1000℃～2200℃
Accuracy:
±2°C for -10°C~0°C
±1.0°C/±1.0% for 0°C~120°C
±1.5°C/±1.5% for 120°C~1200°C
±1.5% for 1000°C~2200°C (whichever is greater, room temperature of 25℃, conventional lens)
Functions
Color palettes: White Hot, Black Hot, Red Hot, Ironbow, Rainbow, Rainbow HC, Lava. Customized palette & color inversion are supported
Image modes: Thermal, Visual image, Fusion, T-Mix, PIP, dual-channel image
On screen analyzer: 16 Points/16 Lines/16 Rectangles/16 Circles. T-select is supported
Level & span: Auto/Manual/Touch
HI/LO temperature alarm: LCD animation, LED flashlight, Buzzer
HI/LO temperature tracking: ✔
ROI correction: Supports regional emissivity correction
Digital camera resolution: 13MP
Digital zoom: ✔
Photo capturing / Video recording: ✔
Full-screen thermal radiometric video stream: ✔
T-Contrast: ✔
T-Sharp: ✔
Smart meter: ✔
AI voice: ✔
OTA upgrade: ✔
QR code scanning: ✔
Text/Voice annotation: ✔
HDMI display extension: ✔
WiFi / Wi-Fi live streaming: ✔
Bluetooth: ✔
Laser pointer: ✔
LRF: 0.1～50m (Class 2, red)
LED lighting: ✔
Analysis software: PC+APP
General Characteristics
Battery: 7.2V/5000mAh rechargeable & detachable Li-ion battery pack
Operating time: ≥5 hours
Charging system: Type-C direct charging / Independent charging of the battery pack
Charging time: Charging to 90% in 2.5 hours (Power off charging or independent charging of the battery pack)
USB: Type-C USB, Micro HDMI
Storage:. Built-in 128G, support SD expansion
Image storage format: JPG
Video storage format: MP4/UIR
Working temperature: -20℃～55℃
Storage temperature: -40℃～60℃
Working humidity: 10%～95%RH，noncondensing
Protection: IP54 & 2m drop proof
