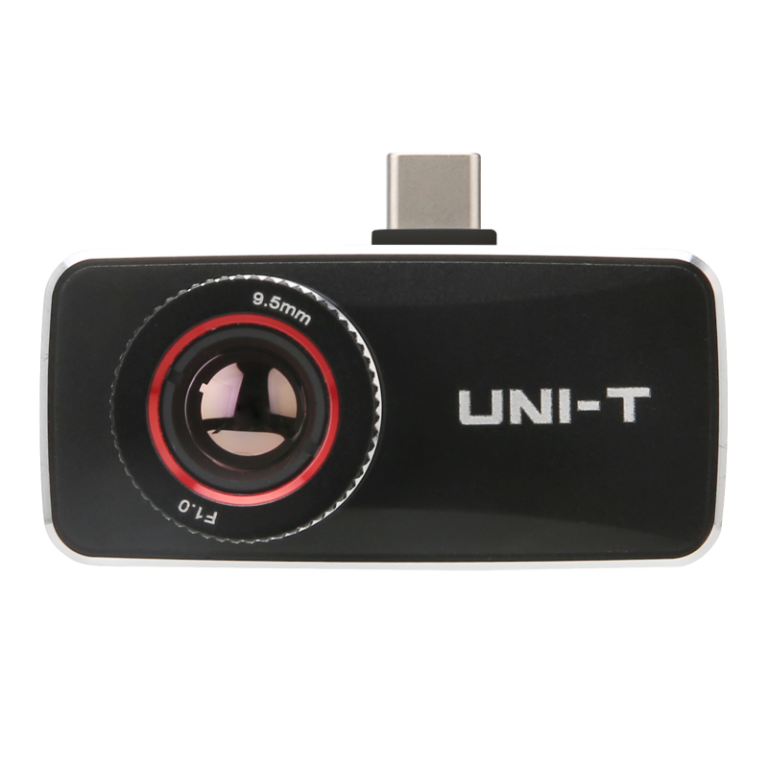

UNI-T UTi740MS ອຸປະກອນສະແດງຮູບພາບຄວາມຮ້ອນສໍາລັບໂທລະສັບສະມາດ (8~14µm, -20℃ ~ 550℃)
IR resolution (Pixels): 400×300
Spectral range: 8~14µm
Pixel size: 12µm
Frame rate: ≤25Hz
Thermal sensitivity (NETD): ≤45mK @25℃
Focus: Manual Focus
Lens focal length: 9.5mm
Field of view (FOV): 29° (H) × 21.5° (V)
Measurement modes: Industrial & EST screening
Temperature measurement range: -20℃ ~ 550℃
Accuracy:
Industrial: ±2° or ±2%, whichever is greater (-10℃ ~ 550℃)
EST: ±0.5° (20℃ ~ 50℃)
Color palettes: Ironbow, White Hot, Black Hot, Red Hot, Lava, Rainbow, Rainbow HC
Image modes: Thermal, Fusion, PIP
On screen analyzer: 5 Points / 1 Line / 3 Rectangles / 3 Circles
Isotherm: Auto / Below / Above / Section / Manual
Hi/Lo temperature alarm: LCD animation & Buzzer
Hi/Lo temperature tracking:√
Video recording: √
General Characteristics
USB: Type-C
Image storage format: JPG
Video storage format: MP4
Certificates: CE, FCC, RoHS
Languages: ZH, EN, FR, DE, IT, ES, SV, PL, CZ
Weight: 46g
Dimension: 58mm × 27mm × 28.6mm
