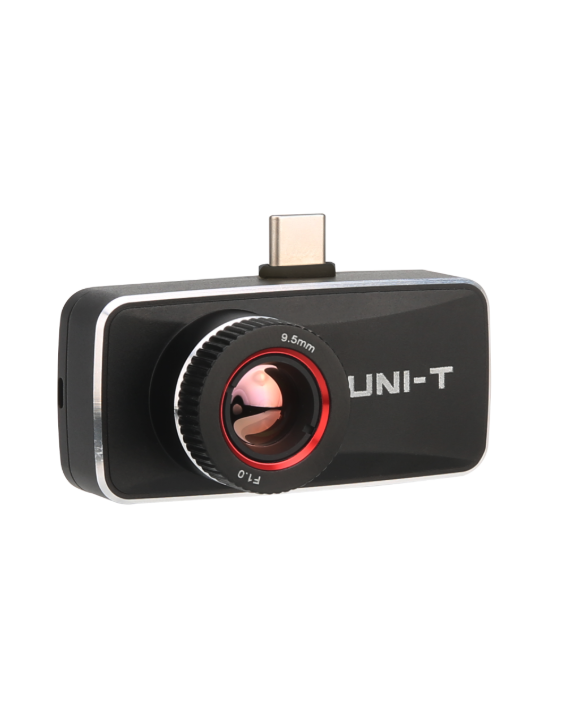

UNI-T UTi740M ກ້ອງຖ່າຍຮູບຄວາມຮ້ອນໂທລະສັບສະຫຼາດ (-20 ℃ ~ 550 ℃, 400 × 300 pixel, 8 ~ 14 µm)
IR resolution(Pixels): 400×300
Spectral range: 8~14µm
Pixel size: 12µm
Frame rate: ≤25Hz
Thermal sensitivity(NETD): ≤45mK @25℃
Focus: Manual Focus
Lens focal length: 9.5mm
Field of view(FOV): 29°(H) × 21.5°(V)
Measurement modes: Industrial & EST screening
Temperature measurement range: -20℃~550℃
Accuracy:
Industrial: ±2° or ±2% whichever is greater (-10℃~550℃)
EST: ±0.5° (20℃~50℃)
Functions
Color palettes: Ironbow, White Hot, Black Hot, Red Hot, Lava, Rainbow, Rainbow HC
Image modes: Thermal, Fusion, PIP
On screen analyzer: 5 Points/1 Lines/3 Rectangles/3 Circles
Isotherm: Auto/Below/Above/Section/Manual
Hi/Lo temperature alarm: LCD animation & Buzzer
Hi/Lo temperature tracking: √
Video recording: √
General Characteristics
USB: Type-C
Image storage format: JPG
Video storage format: MP4
Languages: ZH, EN, FR, DE, IT, ES, SV, PL, CZ
Weight: 46g
Dimension: 58mm×27mm×28.6mm
