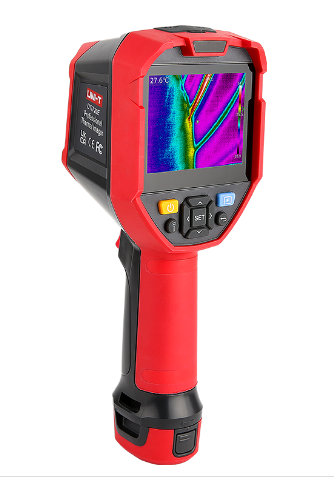

UNI-T UTi720E ປັບປຸງກ້ອງຖ່າຍຮູບຄວາມຮ້ອນ (256 × 192 pixel, -20 ℃ ~ 550 ℃)
Technical Data
IR resolution (Pixels): 256×192
Display: 3.5‘’IPS (640*480)
Field of view(FOV): 56°×42.2°
Thermal sensitivity(NETD): ≤50mK @25℃
Spatial resolution(IFOV): 3.8mrad
Frame rate: ≤25Hz
Focus: Focus Free
Temperature measurement range: -20℃~550℃
Accuracy:±2℃ or ±2% whichever is greater
Emissivity: 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes: 7 (White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)
Image modes: Thermal,Visual image,Fusion,PIP
On screen analyzer: Point 5/Line 1/Rectangle 3/Circle 3
Digital camera resolution: 2MP
Digital zoom: 2x, 4x
Hi/Lo temperature alarm: Icon,LED flashlight
Isotherm: 6 (Auto/Ratio/Below/Above/Section/Manual)
PC software analysis: Yes
Wi-Fi: Yes
General Characteristics
Battery: Detachable Li-ion battery pack(3.7V 5200mAh)
Battery operation time: ≥ 4 hours (without Wi-Fi)
USB: Type-C
IP rating:IP54
Drop proof: 2m
Storage: 16GB Micro SD card
Image/Video storage format: JPEG
Certificates: CE,UKCA,FCC,RoHS
Product net weight:630g
Product size: 260mm×97mm×99mm
Packing Details
Standard accessories: Micro SD card,Type-C USB cable, English manual, Li-ion battery pack
Standard individual packing: Toolbox,Gift box
Standard Qty per carton: 1
Standard carton size:400mm×185mm×345mm
Standard carton G.W.: 3.6kg
