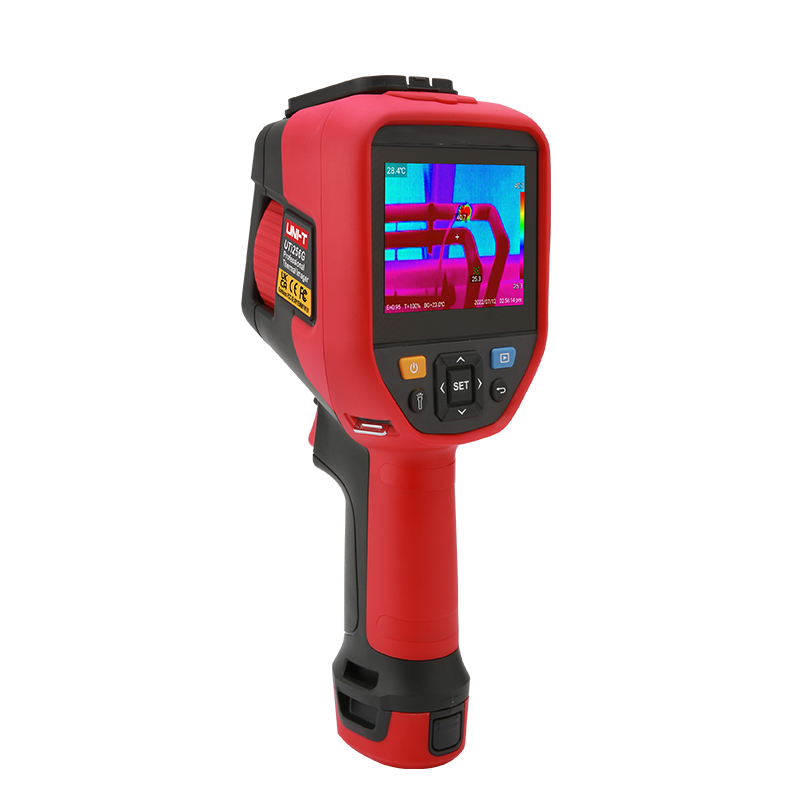

UNI-T UTi256G ກ້ອງຖ່າຍຮູບຄວາມຮ້ອນແບບມືອາຊີບປັບປຸງ (256×192, -20℃~550℃; 1.91mrad)
Technical Data
IR resolution (Pixels): 256×192
Display: 3.5‘’ IPS Touch (640×480)
Field of view(FOV): 28°×20°
Thermal sensitivity(NETD): ≤40mK
Spatial resolution(IFOV): 1.91mrad
Frame rate: ≤30Hz
Focus: Manual
Temperature measurement range: -20℃~550℃
Accuracy: ±2℃ or ±2% （whichever is greater）
Emissivity: 0.01~1.00 adjustable(0.95 default)
Functions
Color palettes: 7 (White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)
Image modes: Thermal,Visual image,Fusion,PIP
On screen analyzer: 3 Points/3 Lines/3 Rectangles/3 Circles
Digital camera resolution: 5MP
Digital zoom: 2x, 4x
Hi/Lo temperature alarm: Icon
Isotherm: 5 (Auto/Manual/Above/Below/Section)
Software analysis: PC+APP
Voice recording
Wi-Fi / Bluetooth
Laser pointer
General Characteristics
Battery: Detachable Li-ion battery pack(3.7V 5200mAh)
Battery operation time: About 5 hours (with Wi-Fi off)
USB: Type-C
IP rating: IP54
Drop proof: 2m
Storage: 8GB Internal; 32GB External
Image/Video storage format: JPEG
Certificates: CE,UKCA,FCC,RoHS
Product net weight: 880g
Product size: 261mm×104mm×97mm
Packing Details
Standard accessories: Micro SD card,Type-C USB cable, English manual, Li-ion battery pack,Documents download operation guide card
