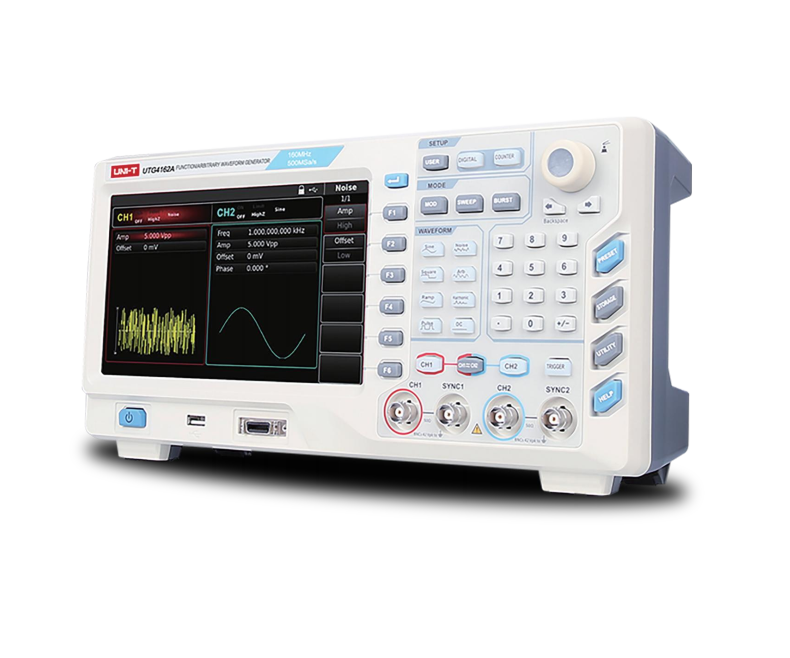

UNI-T UTG4202A Function/Abitrary Waveform Generator (200MHz; 2CH; 500MSa/s)
Max. frequency: 200MHz
Channels : 2
Sampling rate : 500MSa/s
Waveforms : Sine,square,ramp,harmonic,pulse,noise,DC voltage,arbitrary
Working modes : Continuous, modulation, sweep, burst
Modulation types : AM,FM,PM,ASK,FSK,PSK,BPSK,QPSK,OSK,PWM,SUM,QAM
Frequency Characteristics:
Sine : 1μHz~200MHz
Square/Pulse : 1μHz~60MHz
Ramp : 1μHz~5MHz
Harmonic : 1μHz~100MHz
Noise (-3dB) : 200MHz
Resolution : 1μHz
Arbitrary Waveform:
Frequency range: 1μHz~50MHz
Memory depth: 8pts~32Mpts
Vertical resolution : 16bits
Min rise/fall time (typical: 1Vpp) : <5ns
Power: 100V~240V AC, 50Hz/60Hz
Display: 8 inch TFT LCD, WVGA (800 x 480)
Product net weight: 3.5kg
Product size (W×H×D): 336mm x 164mm x 108mm
