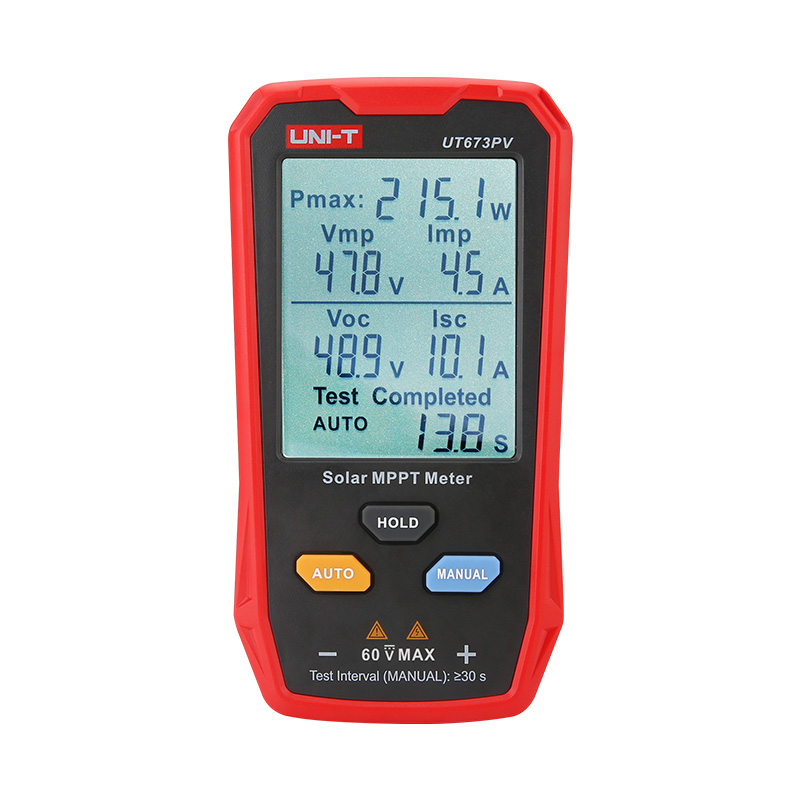

UNI-T UT673PV ເຄື່ອງວັດແທກແສງຕາເວັນ MPPT (Pmax: 800W; Vmp: 60V; Imp: 35A; Voc: 60V; Isc: 35A)

Specification

Max power measurement: 5～800W; ±(1.0%＋10)

Max power current(DC): 0～35A; ±(1.5%＋5)

Max power voltage(DC): 12～60V; ±(1.5%＋5)

Open circuit current(DC): 12～60V; ±(1.5%＋5)

Short circuit current(DC): 0～35A; ±(1.5%＋5)

General Features

Display: Large LCD (52 * 66mm)

Reverse polarity connect Protection: √

Over voltage protection: √

Over current protection: √

Over temperature protection: √

Over power protection: √

Manual/Auto MPPT test: √

Data hold: √

Power supply: No battery needed, powered by solar panel

Ovecategory: CAT 0 60V:

Certificate: CE, cETLus, RoHS
