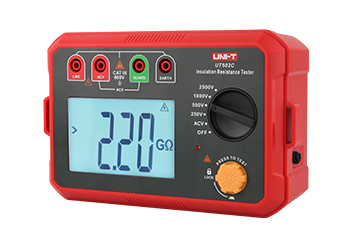

UNI-T UT502C Insulation Resistance Tester (0MΩ~20.0GΩ, 250~2000V)
Insulation Resistance Measurement:
Output Voltage- Measurement Range:
250V- 0.00MΩ~500MΩ
500V- 0.00MΩ~2.00GΩ
1000V- 0.00MΩ~5.00GΩ
2500V - 0.00MΩ~20.0GΩ
Accuracy:
0.00MΩ～99.9MΩ: ±(3%+5)
100MΩ～9.99GΩ: ±(5%+5)
10.0GΩ～20.0GΩ: ±(10%+5)
Voltage Measurement Range: AC: 30V～750V (50Hz/60Hz)， ±(2%+3)
Short-Circuit Current: <2mA
Powered by: Adaptor (optional,without charging function)
6×1.5V AA alkaline batteries
Auto Power Off: √
Self-Lock Function: √
Low Battery Indication: √
Data Hold: √
Auto Discharge: √
Audible and Visual Alarm: √
Overrange Indication: √
Backlight function: √
Altitude: ≤2000 m
Operating temperature and Humidity: 0℃~35℃,<75% RH
Storage temperature and Humidity: -20℃~60℃,<80% RH
Rating: CAT III 600V
General Features:
Product Color: Red + grey
Product Weight: (Include batteries) 0.6kg
Product Size: 183.5mmx115mmx74mm
Accessories: User manual *1 pcs；test lead *1 set；Alligator *1 set,Strap *1 pcs, 1.5V AA batteries *6pcs.
