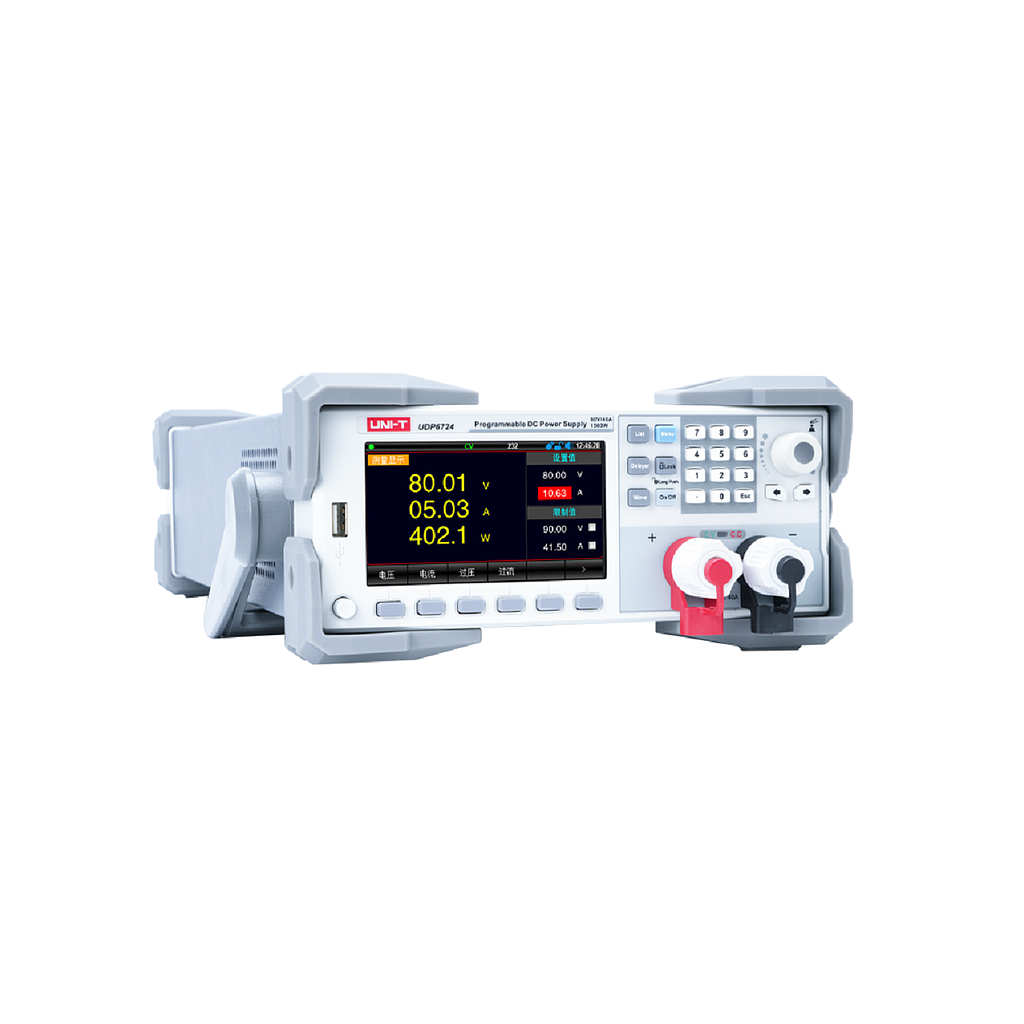

UNI-T UDP6723 ການປ່ຽນການສະຫນອງພະລັງງານ DC (80V, 40A, 850W)
Rated output voltage: 0~80V
Rated output current: 0~40A
Output power: 850W
Load regulation ±(%of Output+Offset)
Voltage: <0.01%+10mV
Current: <0.1%+10mA
Power regulation ±(%of Output+Offset)
Voltage: <0.01%+10mV
Current: <0.1%+10mA
Setting Resolution
Voltage: 10mV
Current: 10mA
Setting Accuracy (25℃±5℃)±(% of Output + Offset)
Voltage: <0.03%+20mV
Current: <0.1%+40mA
Readback resolution
Voltage: 10mV
Current: 10mA
Readback accuracy (25℃±5℃) ±( % of Output +Offset)
Voltage: <0.03%+20mV
Current: <0.1%+40mA
Ripple and noise (20Hz~20MHz)
Voltage: <100mVpp
Current: <50mArms
Temperature coefficient (% Output/°C+Offset)
Voltage: 0.02%/℃+10mV
Current: 0.03%/℃+20mA
Rise time (light load): <0.3S
Rise time (full load): <0.5S
Fall time (light load): <5S
Fall time (full load): <0.15S
Transient Response: <500uS
Readback Temp.coefficient (%Output/°C+Offset)
Voltage: 0.01%+10mV
Current: 0.03%+20mA
Setting stability-30min
Voltage: 0.03%+20mV
Current: 0.1%+40mA
Setting stability-8h
Voltage: 0.03%+20mV
Current: 0.1%+40mA
Readback stability-30min
Voltage: 0.03%+20mV
Current: 0.1%+40mA
Readback stability-8h
Voltage: 0.03%+20mV
Current: 0.1%+40mA
Protection: OVP/OCP/OTP
Storage: 100
List Function: 40*200
Screen: 4.3"TFT LCD
Interface: RS232/RS485/USB Host/USB Device/LAN
USB: √
Protocol: SCPI/MODBUS
Power Voltage: 220V ±10%
Frequency: 47~63Hz
Size(W×H×D): 475*215*88mm
Weight: 5.9kg
Efficiency: 84%
Fuse: 15A
PF: 0.98
Max Input Current: 10A
Maximum Apparent Power: 1100VA
Withstand Voltage: 500V
