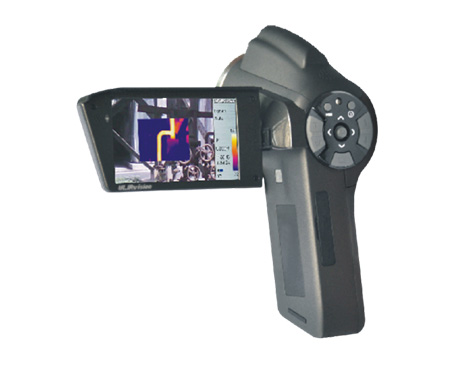

Ulirvision TI395 ກ້ອງຖ່າຍຮູບຮູບພາບຄວາມຮ້ອນສໍາລັບຄໍາຮ້ອງສະຫມັກໄຟຟ້າ & ອຸດສາຫະກໍາ (384×288, -20~250℃, 200~600℃)
Detector Data:
Type: Uncooled FPA
IR resolution: 384×288
Pixel pitch: 17μm
Spectral range: 7.5～14μm
NETD/Sensitivity: 70mK
Lens:
FOV/Minimum imaging distance: 24°×18°/30cm
IFOV: 1.2mrad
Focus: Auto/Motor
Lens (Optional): 45°×34°/15cm、12°×9°/1m
Image Performance:
Display: 3.2”,270° tiltable LCD,800×480 pixels
Visual camera: 3.0 mega pixel
Frequency: 50Hz/60Hz
Zoom: 1X～8X continuous
Color palettes: 12 palettes(including iron, rainbow, white hot and black hot etc.)
Contrast/brightness: Auto/Manual
Measurement:
Temperature range: -20℃～+250℃ (Standard)
200℃～+600℃ (Optional)
Measurement accuracy: ±2℃/±2%(reading)
Spotmeter: 4 adjustable spots
Image Storage:
Storage type: Built-in flash card, up to >500 images
8G SD card, up to >8000 images
Storage mode: Auto/Manual store image in frame
Interfaces:
Power interface: Yes
SD card slot: Yes
Video output: CVBS
Audio output: Yes
USB: USE2.0, radiometric images、measurement data and voice are transferred to PC
Tripod: 1/4” -20
Power System:
Battery type: Lithium battery
Battery operation time: 2h continuous
External power DC: 5V±5%
Charging system: Intelligent charger or in camera
Power saving: Yes
Environment Parameters:
Operating temperature range: -20℃～+50℃
Storage temperature range: -40℃～+70℃
Humidity: ≤95% (Non-condense)
Vibration: 2G(IEC60068-2-6)
Shock: 25G(IEC60068-2-29)
Encapsulation: IP54(IEC60529)
Physical Data:
Size: 128mm×62mm×154mm
Weight: ≤0.4kg (with battery and standard lens)
Packing Standard: Thermal imaging camera with standard IR lens, 2 Li-ion batteries, battery charger, adapter, USB cable, SD card, card reader, software CD, warranty card, calibration certificate
Option: Laptop, SLR camera
