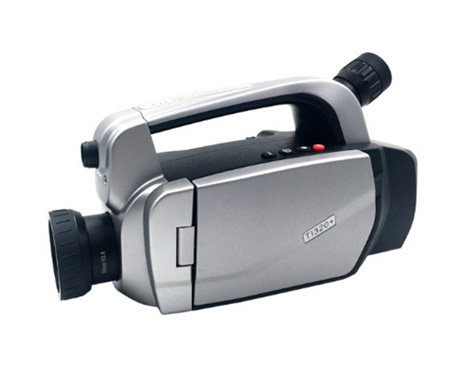

Ulirvision TI320+ ກ້ອງຖ່າຍພາບຄວາມຮ້ອນອາຍແກັສ (320×256, 20℃～+500℃gas detection)
Detector Data:
Type: Cooled QWIP
IR resolution: 320×256
Pixel pitch: 30μm
Spectral range: 9.8～11.2μm
NETD/Sensitivity: 25mK
SF6 gas sensitivity: ≤0.001ml/s
Lens:
FOV/Focal distance: 10°×7.5°/55mm
Minimum Imaging distance: 2m
IFOV: 0.55mrad
Focus: Manual
Image Performance:
Display: 5”,color LCD, 800×480 pixels
Built-in visible light camera: 5 megapixel CMOS, autofocus, 1 LED fill light
Frequency: 50Hz/60Hz
Digital zoom: 1X～8X continuous
Color palettes: 12 palettes (including iron, rainbow, white hot and black hot etc.)
Contrast/brightness: Auto/Manual
Measurement:
Temperature range: -20℃～+500℃
Temperature accuracy: ±2℃/±2%(reading)
Spotmete: 10 adjustable spots
Image Storage:
Storage card: 8G SD card(can be extended to 32G)
Video export: Card reader, USB, WiFi
Laser Point:
Grade/Type: Class 2,1mW/635nmRed
Interfaces:
Power :Yes
SD card slot: Yes
Video output: HDMI
Audio output: Yes
Tripod: 1/4” -20
Power System:
Battery type: Rechargeable li-ion battery
Battery operation time: 2h
DC supply DC: 12V
Charging system: In camera, AC adapter, car charger
Power saving: Yes
Environment Parameters:
Operation temperature range: -15℃~+40℃
Storage temperature range: -20℃~+50℃
Humidity: ≤95%(Non-condense)
EMC: EN61000-6-4&EN61000-6-2、FCC47CFR Part15 class A、EN61000-4-8, L5
Vibration: 2G(IEC60068-2-6)
Shock: 25G(IEC60068-2-29)
Encapsulation: IP54(IEC60529)
Physical Data:
Size (L×W×H): 308mm×142mm×166mm
Weight: ≤2.5kg(with standard lens)
Gas Detection: Sulfur Hexafluoride(SF6), Ammonia(NH3), Cyanoacrylate, chlorine dioxide, acetic acid, freon-12, Ethylene, methyl ethyl ketone(MEK), etc.
Packing:
Standard: Thermal imaging camera with standard 10°standard len, USB WiFi module, 2 Li-ion batteries, battery charger, adapter, car, charger, SD card, SD card, reader, software CD, warranty card, certificate, calibration book
Optional accessories: Laptop, SLR camera
