Detector Data:
Type: Uncooled FPA
IR resolution: 384×288
Pixel pitch: 17μm
Spectral range: 7.5～14μm
NETD/Sensitivity: 50mK
Lens Data:
FOV: 24°× 18°
Minimum imaging distance: 30cm
IFOV: 1.2mrad
Focus: Motor/Auto
Lens(optional): 45°×34°/15cm, 12°×9°/1m
Image Performance:
Display: High definition 3.2 ”color digital LCD display, rotatable,800×480
Visual camera: 3 megapixel CMOS, auto focus, 1 led fill light
Frequency: 50Hz/60Hz
Amplification: 1X～8X Continuous zoom
Color palettes: 12 options (including iron red, rainbow, black hot and white hot)
Contrast/Brightness: Auto/Manual
Measurement:
Temperature range: +30℃～+45℃
Measurement accuracy: ±0.5℃
Image storage:
Built-in memory: Yes, can store> 500 frames
Storage media: 8G, can store> 8000 frames
Storage method: Auto / manual single frame image
Laser indicator:
Laser classification: Second level
Laser power: 1mW
Laser wavelength: 635nm red
Power System:
Battery type: Lithium battery, rechargeable
Operating time: 3h continuous working (room temperature)
External power DC: 5V, ±5%
Charging system: Smart charger or local charger
Power saving: Yes
Environment Parameters:
Operating temperature range: +16℃～+32℃
Storage temperature range: -40℃～+70℃
Humidity: ≤95%(non-condensing)
Shock: 25G(IEC60068-2-29)
Vibration: 2G(IEC60068-2-6)
Encapsulation: IP54(IEC60529)
Physical data:
Size: 128mm×62mm×154mm
Weight: ≤0.4kg(With battery and standard lens)
Packing:

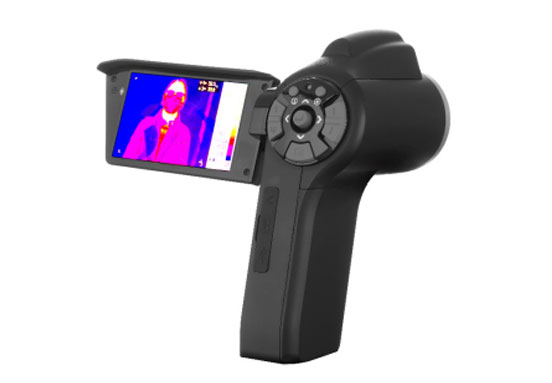

Standard: Thermal Imaging Camera(with standard lens), 2 lithium batteries, battery charger, adapter, USB cable, SD card, card reader, software CD, warranty card, certificate, calibration book
Optional accessories: Laptop, SLR
