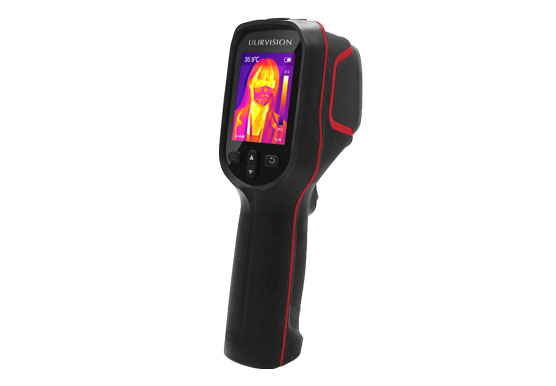

Ulirvision T10P Handheld Fever Screening ກ້ອງຖ່າຍຮູບຄວາມຮ້ອນ (160×120, 30~45℃)
Detector Data:
Type: Uncooled FPA
IR resolution: 160×120
Pixel pitch: 17μm
Spectral range: 7.5～14μm
NETD/Sensitivity: 50mK
Lens Data:
FOV: 42°× 32°
Minimum imaging distance: 30cm
IFOV: 4.42mrad
Focus: No need to focus
Image Performance:
Display: 2.4”LCD display,320×240
Visible light camera: 3 megapixel CMOS, auto focus, 1 led fill light
Display mode: Infrared, visible light, fusion
Palette: iron red, rainbow, black hot and white hot
Measure:
Temperature range: +30℃～+45℃
Measurement accuracy: ±0.5℃
Measurement mode: Spot measure(Center spot, highest temp, lowest temp)
System functions:
USB interface: USB2.0, Image, measurement data transmission
WIFI: Yes, equipped with dedicated APP
Function settings: Date / time, temp unit ℃/℉/K, language
Storage: 8G memory, support expansion
Laser indicator: Class 2, 1mW, 635nm red
Tripod: 1/4” -20
Battery type: Lithium battery, rechargeable
Operating time: 8h continuous working (room temperature)
Charging type: Micro USB direct charge
Charging time: 4h(room temperature)
Environment Parameters:
Operating temperature range: +16℃～+32℃
Storage temperature range: -40℃～+70℃
Humidity: ≤95%(non-condensing)
Drop protection: 2m
Encapsulation: IP54(IEC60529)
Physical data:
Size: 190mm×72mm×60mm
Weight: ≤320g(with battery)
Standard: Thermal Imaging Camera, adapter, USB cable, warranty card, certificate, calibration
book
