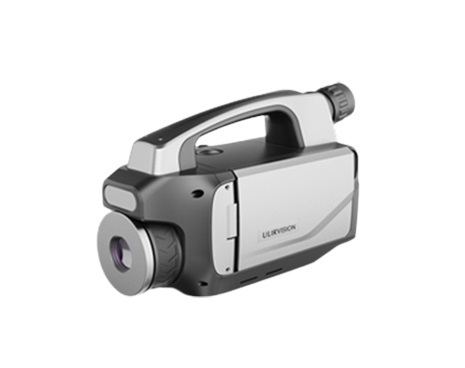

Ulirvision G330 VOCs Gas Optical ກ້ອງຖ່າຍພາບຄວາມຮ້ອນ (320×256, gas detection)
Detector Data:
Type: High sensitivity cooled detector
IR resolution: 320×256
Pixel pitch: 30μm
Spectral range: 3.1~3.5μm
NETD/Sensitivity: 10mK
Gas sensitivity: ≤0.4g/hr (CH4)
Lens:
FOV/Focal distance: 14° x 11.2° /39mm
Minimum Imaging distance: 0.5m
IFOV: 0.77mrad
Focus: MManual/Motor/Auto
Lens (optional): 24° x 19.2°/23mm (Optional)
Image Performance:
Display: LCD, HD 5.0", 1280x720, rotatable touch screen
Visual camera: 5 megapixel CMOS, autofocus, 1 LED fill light
Frequency: 50Hz
Digital zoom: 1X～8X continuous
Color palettes: 12 palettes (including iron, rainbow, white hot and black hot etc.)
Contrast/brightness: Auto/Manual
Measurement:
Temperature range: -20℃~+350℃
Temperature accuracy: 0~100℃ accuracy ±1℃ , -20℃~0℃ or ＞+100℃ accuracy ±2%
Image Storage:
Storage card: 128G
Video export: Card reader, USB, WiFi
Interfaces:
Power :Yes
SD card slot: Yes
Video output: HDMI
Audio output: Yes
Tripod: 1/4” -20
Communication Interface: WIFI, Bluetooth, USB
Power System:
Battery type: Rechargeable li-ion battery
Battery operation time: 3h
External power DC: 14V
Environment Parameters:
Operation temperature range: -20℃~+50℃
Storage temperature range: -30℃~+60℃
Humidity: ≤95%(Non-condense)
EMC: EN61000-6-4&EN61000-6-2、FCC47CFR Part15 class A、EN61000-4-8, L5
Vibration: 2G(IEC60068-2-6)
Shock: 25G(IEC60068-2-29)
Encapsulation: IP54(IEC60529)
Physical Data:
Size (L×W×H): ≤262mmX174mmX154mm
Weight: ≤ 2.8kg (with standard lens & battery)
Gas Detection: Methane, ethane, butane, propane, octane, pentane, heptane, hexane, ethylene, propylene, benzene, toluene, ethylbenzene, xylene, ethanol, methanol, isoprene, MEK, MIBK, 1-pentene
Packing:
Standard: Thermal imaging camera, 2 lithium batteries, battery charger, adapter, vehicle power converter, SD card, card reader, software CD, warranty card, certificate, headset, carrying case, video cable, user manual
