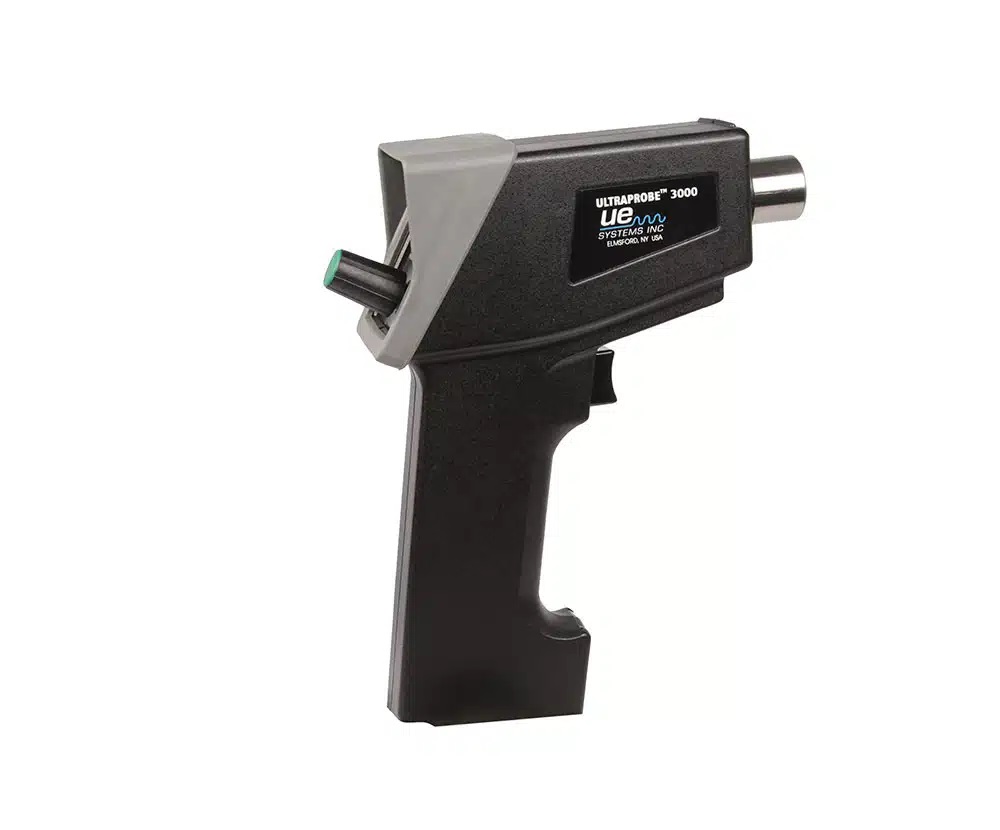

Ultraprobe® 3000 Specifications
Construction: Hand-held pistol type made with ABS plastic
Circuitry: Solid state analog and SMD digital circuitry
with temperature compensationFrequency: Frequency response: 35-45 kHz
Response Time: <10 milliseconds
Display: 128x64 Graphic LED with LED backlight
Memory: 400 storage locations
Battery: Li Polymer Rechargeable
Operating Temp: 0 °C to 50 °C (32 °F to 122 °F)
Output(s): Calibrated heterodyned output, decibel (dB)
frequency, USB data outputAvailable Probes: Scanning module and stethoscope (contact)
module, long range module, RAS MTHeadset: Deluxe noise attenuating headphones.
Over 23 dB of noise attenuation. Meets or exceeds specifications and OSHA standardsIndicators: dB, battery status and 16 segment bar graph,
sensitivity setting, record numberThreshold: 1 x 10-2 std: cc/sec to 1 x 10-3 std. cc/sec
Dimensions: Complete kit in Zero Halliburton
aluminum carrying case 38.1 x 55.9 x 11.43 cm (15” x 22” x 5”)Weight: Pistol Unit: 0.45 kg (1 lbs);
Carrying Case: 4.99 kg (11 lbs)Warranty: 1 year standard,
5 years with completed registration formUltraprobe® 3000 Kit
• UP 3000 Pistol with Decibel Readout and
16 Segment Bar Graph Display Panel
• Spin and Click" Sensitivity/Control Dial
• Scanning Module
• Stethoscope (Contact) Module
• Mini-USB I/O Port & Cable
• Storage Entry
• Recharge Jack
• DHC-2HH-Heavyduty, Durable Headphones for Use With a Hard Hat
• Zero Halliburton Carrying Case
• Li Polymer Rechargeable Battery
and Charger
• Rubber Focusing Probe
• Stethoscope Extension Kit (SLP-EXT)
Brochure
Accessories
Typical Ultraprobe Applications
• Compressed Air Leak Detection
• Steam Trap Inspection
• Valve Leak Detection
• Pressure & Vacuum Leak Detection
• Heat Exchanger, Boiler,
Condenser Leaks
• Tanks, Pipes, Leak Testing
• Wind Noise/Water Leaks
• Hatch Leak Integrity Bearing Testing
• Gear/Gear Box Inspection
• General Mechanical Inspection
& Trouble Shooting
• Electrical Inspection
