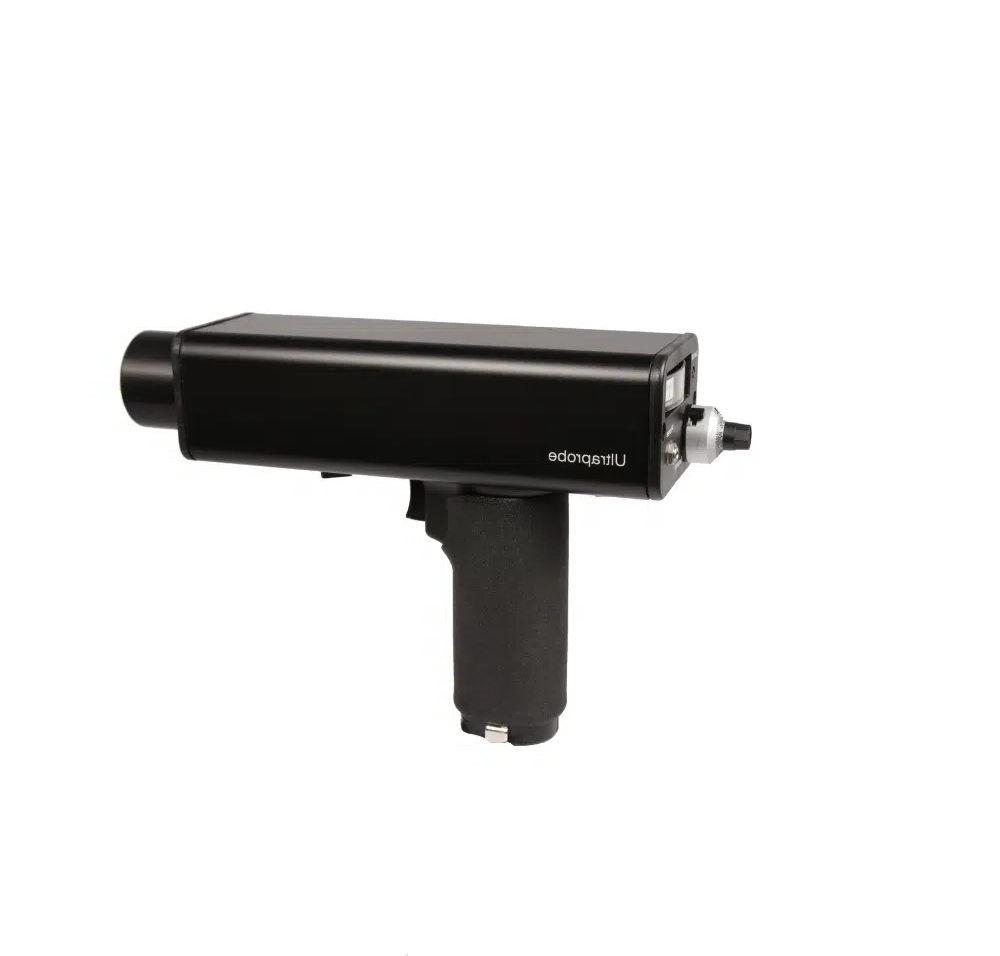

Analog Ultrasonic Inspection System for predictive maintenance
Construction: Hand-held pistol type made with aluminum and ABS plastic
Circuitry: Solid State heterodyne receiver with temperature compensation
Frequency Response: Frequency Detect ultrasonic frequencies between 20 kHz and 100 kHz, continuously variable; Frequencies are converted to 50 kHz to 3 kHz audio

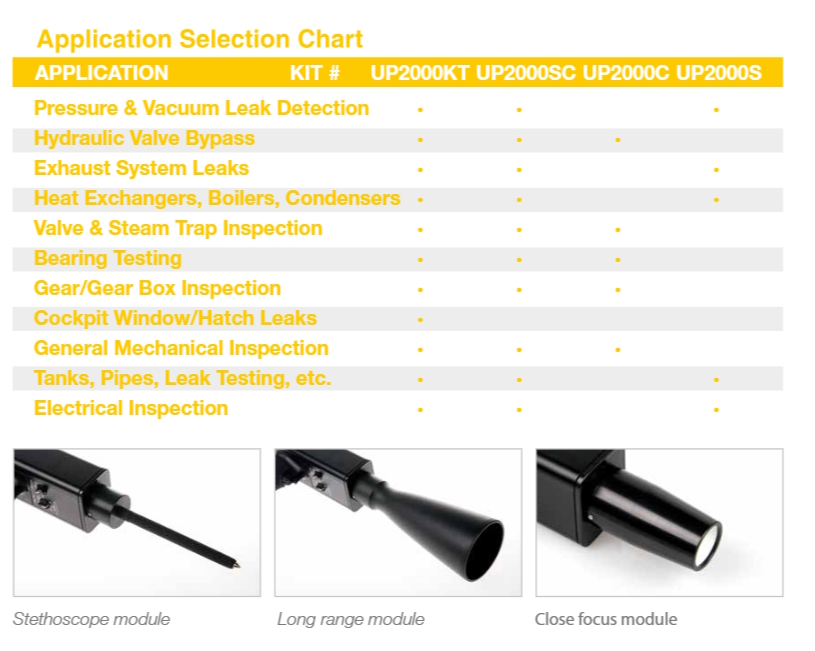

Probes: Scanning Module, Rubber Focusing Probe, Stethoscope Module
Transmitter: Patented warble tone transmission
Headset:
+Noise isolating type: Double headset wired monophonic.
+ Impedance16 ohms. Over 23 dB of noise attenuation.
+ Meets or exceeds specifications and OSHA standards
+ For hard hat use
Indicators: Ballistic output meter; linear calibration scale of 0-100 for logging relative measurements. Meter is accurate 1% throughout entire scale.
Low Level Battery LED indicator for main housing internal power supply.
Battery: Self contained NiMH rechargeable.
RECHARGING SYSTEM: Standard 110V. Also available in 220V.
Features:
+ Frequency Tuning Adjustment Dial: 20-100 kHz
+ Bi-Modal Meter Switch
+ Optional Auxiliary Mode: For chart recorder output: 0-50 mV
+ Sensitivity Control: Precision 10-turn adjustment dial
+ Spring loaded trigger switch
Overall size:
+ Complete kit in Zero Halliburton aluminum carrying case: 47 x 37 x 17 cm (18.5” x 14.5” x 6.5”)
+ Pistol Unit: 0.9 kg (2 lbs.)
+ Carrying Case: 6.4 kg (14 lbs.)
Sensitivity: Detects 0.127 mm (0.005") diameter leak @ 0.34 bar (5 psi) at a distance of 15.24 m (50 ft.)
Threshold*: 1 x 10^–2 std. cc/sec to 1 x 10^–3 std. cc/sec.
Display Modes: Logaritmic and linear
Kit includes:
Frequency Selection (20 kHz – 100 kHz)
• Precision edgewise meter
• 3-way meter/auxiliary mode selector
• Numerically calibrated 10-turn sensitivity dial
• Rechargeable battery with lowlevel indicator light
• Anodized aluminum housing
• Trisonic™ Scanning Module
• Stethoscope/Contact Module
• Stethoscope Extension Kit
• Rubber Focusing Probe
• Warble Tone Generator
• Deluxe noise isolating headset
• Zero Halliburton aluminium carrying case
• Instruction Manual and Multimedia Training
