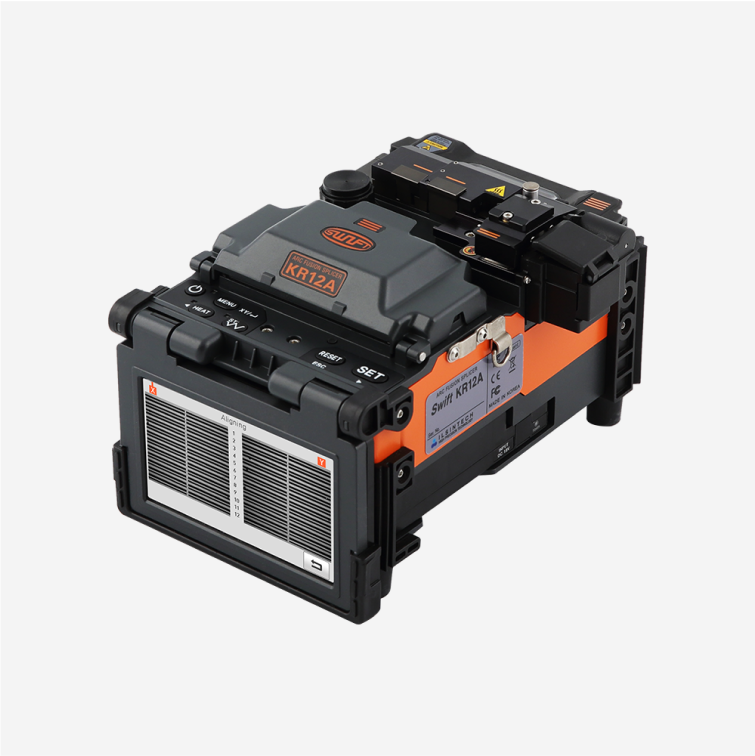

UCLswift KR12A ອຸປະກອນຕໍ່ສາຍເຄືອງ Fusion Splicer
Performance Specifications
General
Fiber alignment: Ribbon
Applicable type of fibers: SM(G.652), MM(G.651), DS(G.653), NZDS(G.655)
Fiber count: Single fiber, 2 ~ 12 Ribbon fiber
Applicable fiber dimensions: Single: Cladding diameter 125㎛, Coating diameter 250, 900㎛; Ribbon: Cladding diameter 125㎛, Ribbon fiber thickness 0.25 to 0.40mm
Fiber cleave length: 10mm
Tension test: 2N / 4.4N (Option)
Storage of splice result: The last 10,000 results to be stored in the internal memory. (Image 10,000 results)
Applicable protection sleeve: 40mm, 60mm (Fiber)
Splicing Performance
Splicing time: Typical 20 sec with standard SM (ITU-T G.652)
Average splice loss: SM: 0.05dB, MM: 0.02dB, DS: 0.08dB, NZDS: 0.08dB
Return loss: >60dB
Splice loss estimate: Available
Splicing modes: Splice mode: 300, Heat mode: 100, Strip mode: 50
Sleeve heating time: 1 ~ 2 core 20 sec, 4 ~ 12 core 50 sec
Display & Viewing
Fiber view and magnification: 20X, Max 60X
Viewing method and display: Two CMOS cameras and 5.0-inch color LCD with electrostatic touchscreen
Power & Battery
Battery life with heat-shrink: 125 cycles with 4,700mAh & 160 cycles with 6,000mAh
Power supply: 100 ~ 240V
Cleaver blade life: Max. 6,200 fibers
Electrode life: Up to 1,500 splices
Cleaver: CM-03RT
Terminals: USB, External power (DC 12V available for car cigar jack)
Environmental & Physical
Storage condition
Temperature: -40°C ~ 80°C, Humidity: 0 ~ 95%
Operating condition
Altitude: 0 ~ 3,660m above sea level
Temperature: -10℃ ~ 50℃
Humidity: 0 ~ 95%, Wind: 15m/s
Non-condensing, Dust proof, Water proof, Shock proo
Dimensions and weight: 136(W) x 215(L) x 132(H)mm (Excluding rubber); 2.3kg (Including battery)
Standard Package
Arc Fusion Splicer: SWIFT KR12A: 1
User Guide: Download: uclswift.com:
Spare Electrode: EI-28: 1 pair
Cooling Tray: : 1
Transporting Case: Hard Case: 1
Battery: 4,700mAh: 1
AC Adapter: 1
Fiber Holder: H7-Series: 1 pair
Tool Box: 1
USB Cable: 1
Sleeve Loader: 2
