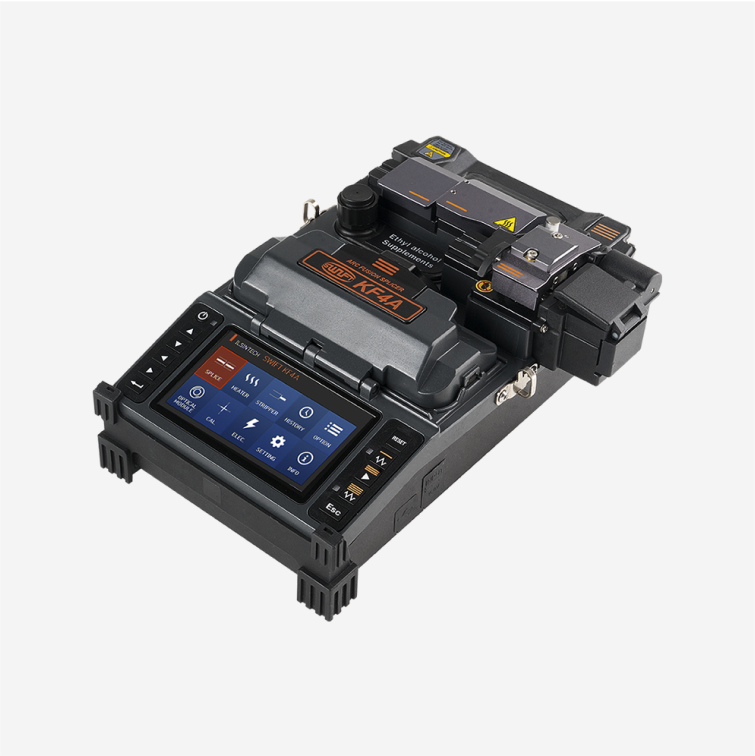

UCLswift KF4A-HDC ອຸປະກອນຕໍ່ສາຍເຄືອງ Fusion Splicer
General
Fiber alignment: Active Clad Alignment
Applicable fiber dimensions: Cladding diameter: 125㎛; Coating diameter: 150㎛~3mm
Fiber cleave length: 7mm to 16mm
Tension test: 1.96N to 2.25N
Fiber count: Single fiber
Applicable type of fibers: SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), SM(G.657 A1, A2/B2, B3)
Storage of splice result: Data : Up to 5,000ea, Image : Up to 5,000ea
Applicable protection sleeve: 60mm, 40mm and micro sleeves
Splicing Performance
Splicing time: Typical 7 sec with SM
Average splice loss: SM: 0.03dB, MM: 0.01dB, DS:0.05dB, NZDS: 0.05dB
Return loss: >60dB
Splice loss estimate: Available
Sleeve heating time: Typical 13 sec with IS-60 mode, IS-60 sleeve
Splicing modes: Splice mode: 300, Heat mode: 100, Strip mode: 50
Display & Viewing
Fiber view and magnification: X/Y 110X, Max 220X
Viewing method and display: Two AXIS CMOS cameras and 3.5-inch color LCD monitor
Power & Battery (Blade life may be changed under the condition of working environment.)
Power supply: 100~240V
Electrode life: Up to 18,000 splices
Cleaver: CF-07FT
Battery life with heat-shrink: Typical 150 cycles with 3,400mAh
Terminals: USB, External power (DC 12V available for car cigar jack)
Cleaver blade life*: Max. 110,000 fibers
Environmental & Physical
Operating condition
Altitude: 0–5,000m above sea level
Temperature: -10°C~50°C
Humidity: 0~95%, Wind: 15m/s
Non-condensing, dust proof,
water proof, shock proof
Storage condition
Temperature: -40°C~80°C
Humidity: 0~95%
Dimensions and weight
132(W) x 212(L) x 73(H)mm (Without Rubber Protector)
1.5kg (Excluding bumper)
Standard Package
Arc Fusion Splicer: SWIFT KF4A: 1
User Guide: Download: uclswift.com:
Cooling Tray: 1
Transporting Case: Hard Case: 1
Battery: 3,400mAh: 1
Battery Charger: 100-240V: 1
Fiber Holder: 1 pair
USB Cable: 2
