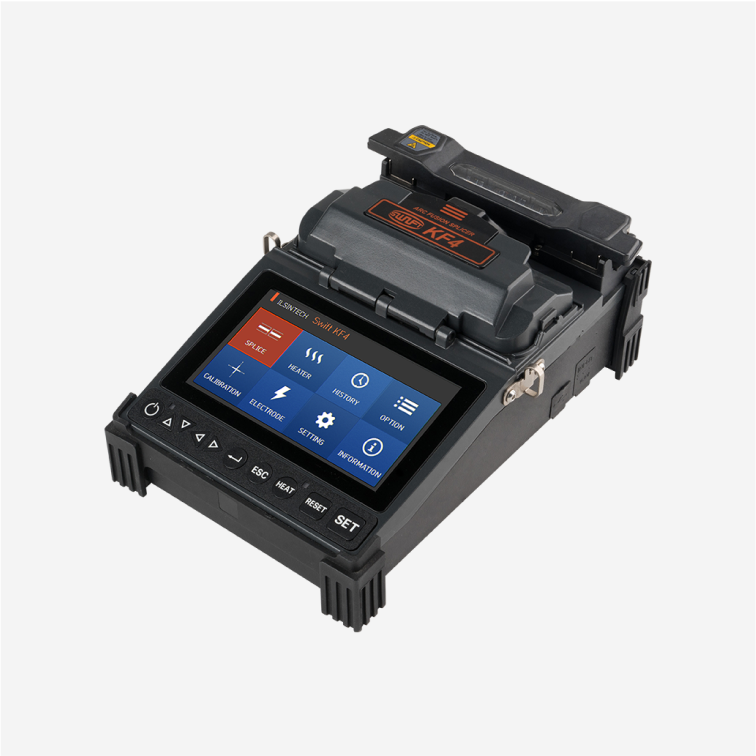

UCLswift KF4 ອຸປະກອນຕໍ່ສາຍເຄືອງ Fusion Splicer
Fiber alignment: Active Clad Alignment
Applicable fibers: SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), SM(G.657 A1, A2/B2, B3)
Fiber count: Single fiber
Applicable fiber dimensions: Cladding diameter: 125㎛, Coating diameter: 150㎛ ~ 3mm
Fiber cleave length: 7mm to 16mm
Splicing modes: Splice mode: 300, Heat mode: 100
Average splice Loss: SM: 0.03dB, MM: 0.01dB, DS:0.05dB, NZDS: 0.05dB
Return loss: > 60dB
Splicing time: Typical 7 sec with SM
Splice loss estimate: Available
Sleeve heating time: Typical 13 sec with IS-60 mode, IS-60 sleeve
Applicable protection sleeve: 60mm, 40mm and micro sleeves
Storage of splice result: Data : Up to 5,000ea, Image : Up to 5,000ea
Tension test: 1.96N to 2.25N
Operating conditions: Altitude: 0 ~ 5,000m above sea level, Temperature: -10℃ ~ 50℃, Humidity: 0 ~ 95%, Wind: 15m/s, Non-condensing, Dust proof, Water proof, Shock proof
Storage conditions: Temperature: -40℃~80℃, Humidity: 0~95%
Dimensions: 124(W) x 189(L) x 75(H)mm (Excluding bumper)
Weight: 1.1kg (Including battery)
Viewing method and display: Two AXIS CMOS cameras with 4.3-inch color LCD monitor
Fiber view and magnification: X/Y 130X, Max 260X
Power supply: 100~240V AC
Battery life with heat-shrink: Typical 220 cycles with 3,400mAh
Electrode life: Up to 38,000 splices
Terminals: USB
Standard Package
Arc Fusion Splicer: SWIFT KF4: 1
User guide: Download from UCLSwift Website:
Cooling Tray: 1
Transporting Case: Soft Case: 1
Battery: 3400mAh: 1
Battery Charger: 100-240V: 1
Cleaver: CI-01: 1
Manual stripper: CF-02: 1
Alcohol dispenser: PP: 1
USB Cable: 1
