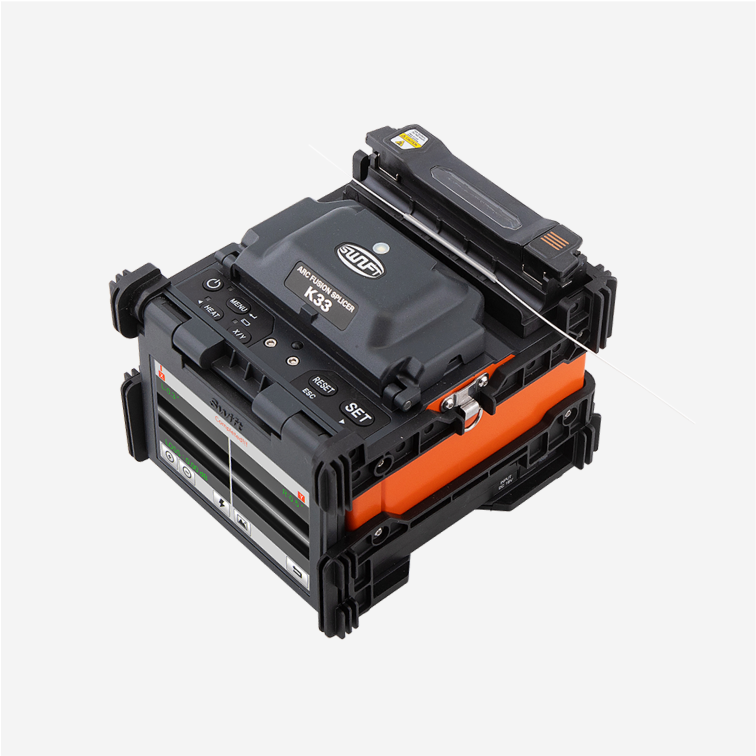

UCLswift K33 ອຸປະກອນຕໍ່ສາຍເຄືອງ Fusion Splicer
Fiber alignment: IPAAS Core Alignment
Applicable fibers: SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), SM(G.657 A1, A2/B2, B3), SM(G.654 E)
Fiber count: Single fiber
Applicable fiber dimensions: Cladding diameter: 80 ~ 150㎛, Coating diameter: 100㎛ ~ 3mm
Fiber cleave length: 250㎛: 5 ~ 16mm, 900㎛: 8 ~ 16mm
Splicing modes: Splice mode: 300, Heat mode: 100
Average splice Loss: SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB
Return loss: > 60dB (Typical)
Splicing time: Typical 6 sec. (Quick Mode)
Splice loss estimate: Available
Sleeve heating time: 9 sec (IS-45 Sleeve, IS-45 mode), 13 sec (IS-60 Sleeve, IS-60 mode)
Applicable protection sleeve: 32mm, 40mm, 60mm (Fiber) / 28mm or 32mm (Connector)
Storage of splice result: The last 10,000 results to be stored in the internal memory. (Image 10,000 results)
Tension test: 1.96N ~ 2.25N
Operating conditions: Altitude: 0 ~ 5,000m above sea level, Temperature: -10℃ ~ 50℃, Humidity: 0 ~ 95%, Wind: 15m/s, Non-condensing, Dust proof, Water proof, Shock proof
Storage conditions: Temperature: -40℃ ~ 80℃, Humidity: 0 ~ 95%
Dimensions: 130(W) x 158(L) x 138(H)mm (Excluding rubber)
Weight: 2.25kg (Including battery)
Viewing method and display: Two CMOS cameras and 5.0-inch color LCD monitor with Electrostatic touch screen
Fiber view and magnification: X/Y 200X, Max 670X
Power supply: 100 ~ 240V
Battery life with heat-shrink: 270 cycles with 4,700mAh & 350 cycles with 6,000mAh
Electrode life: Up to 18,000 splices
Terminals: USB, External power (DC 12V available for car cigar jack)
Standard Package
Arc Fusion Splicer: SWIFT K33: 1
User guide: Download from UCLSwift Website
Transporting Case: Hard Case: 1
Battery: 4,700mAh: 1
AC Adapter : 1
Cleaver: CS-01BT: 1
Manual stripper: CF-02: 1
Alcohol dispenser: PP: 1
Tool box : 1
USB Cable : 1
Sleeve Loader : 2
