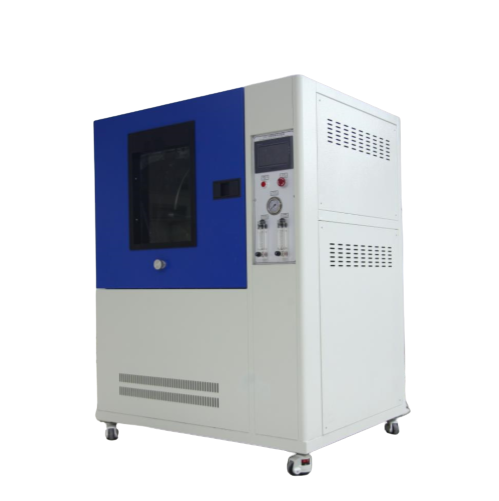

Uby Tech IPX3-4 Swing Tube Rain Test (Box Type)
Used to test the IPX3 and IPX4 waterproof level of the product
Specifications
External size: L1350*D1120*H1770mm
Inner size: L900*D900*H900mm
Pendulum tube size: R400mm
Sample turntable diameter:￠400mm
Flow: IPX3=1.1L/min±5%; IPX4=1.8L/min±5%
Turntable height range: 350-600mm
Spray hole size: ￠0.4mm
Pendulum tube inner diameter: 15mm
Maximum load-bearing capacity of turntable: 50kg
Turntable rotation speed: 1-5r/min(Precisely adjustable)
Turntable rotation method: Forward rotation/forward&reverse rotation alternately
Swing tube angle: 120° (IPX3), 350° (IPX4)
Swing speed of pendulum tube: 240° back and forth 4S, 720°back and forth 12S (Precise control)
Power supply: 220V, 50Hz
Test sample power: 220V, 50Hz
Power: 1.0KW
Safety protection function: Leakage protection, water shortage protection, short circuit protection
