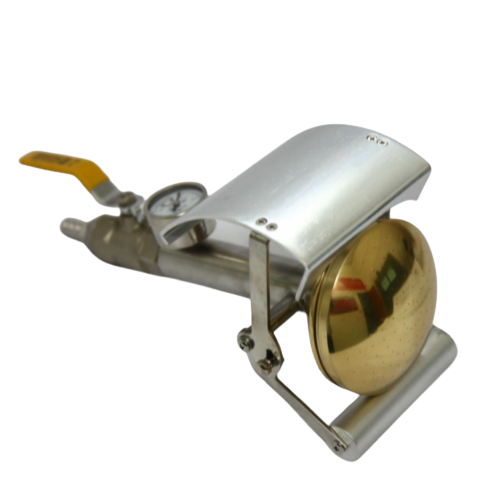

Uby Tech UP-6198-FS34A ອຸປະກອນທົດສອບ Rain Shower (Test IPX3, IPX4)
ຜູ້ຜະລິດ: Uby Tech Model: UP-6198-FS34A ຮັບປະກັນ: 12 Tháng - ຕິດຕໍ່ພົວພັນ
Used to test the IPX3 and IPX4 waterproof level of the product
Specifications
External size: About L380*W130*H150mm
Flow display: None
Brass nozzle size: Ø 102mm
Number of spray holes: 121个
Water jet aperture size: Ø 0.5mm
Hole position/ Outer diameter of water inlet
- Inside 2 circles 12 holes/circle, spacing 30°
- Inside 4 circles 24 holes/circle, spacing 15°
Outer diameter of stainless steel water pipe: Ø 18mm
Water flow: Ø 28mm
Flow adjustment method: 10L/min±5%
Water pressure range: Manual adjustment
External dimensions: 50―150Kpa
