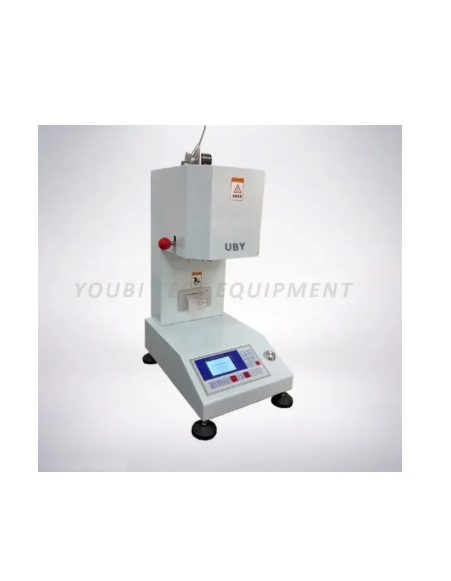

Uby Tech UP-5004 ເຄື່ອງທົດສອບອັດຕາການໄຫຼຂອງລະລາຍ

Barrel parameters: Inner hole 9.55±0.025mm

Pistons parameters: Piston head: 9.475±0.015mm

Piston length: H=6.35±0.1mm

Paramters: Extrusion hole 1=2.095±0.005mm

Temperature parameter: With intelligent temperature control instrument, with four pairs of significant temperature setting control, PID parameters can be automatically set, precision up to ± 0.1 degree centigrade

Temperature range: 80degree centigrade~400degree centigrade

Temperature accuracy: ±0.2 degree centigrade

Display resolution: 0.1degree centigrade

Maximum comsuption: < 600W

Temperature recovery time: less 4 min.

Weight parameters are as follows:

Weight accuracy: ±0.5%

Basic configuration
A 0.325kg (including binder bar)

B 1.2 kg

C 2.16 kg

D 3.8 kg

E 5.0 kg

F 10 kg

G 12.5 kg

H 21.6 kg

Position detection

Loop distance from up and down: 30mm

Control precision: ± 0.1mm

Test flow control

Times of cutting the material: 0~10 times

Material cutting interval: 0~999s

Control flow reaches the set temperature without volatility

Barrel temperature time: 15 min.

Material be installed: 1 min.

Material sample temperature recovery time: 4 min.

When binder set: 1min
