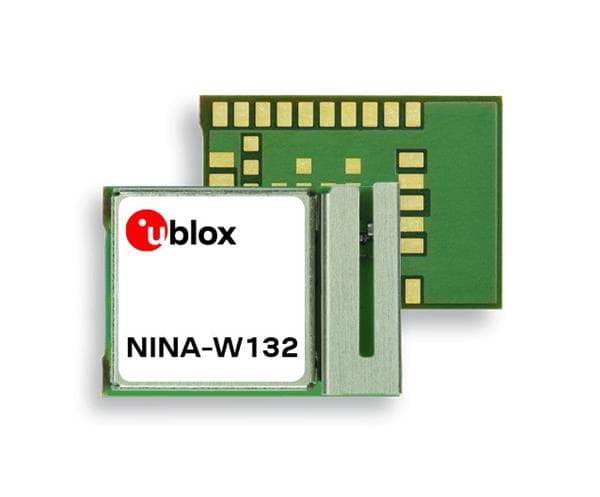

u-blox NINA-W132-03B ໂມດູນ WiFi ESP32, 802.11bgn, ສາຍອານເທນາເລດ, u-connectXpress

Data Rate: 11 Mb/s, 54 Mb/s, 72 Mb/s

Frequency: 2.4 GHz

Dimensions: 14 mm x 10 mm x 3.8 mm

Output Power: 18 dBm

Interface Type: GPIO, SPI, UART

Moisture Sensitive: Yes

Protocol Supported: 802.11 b/g/n

Modulation Technique: CCK, DSSS, OFDM

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 3 V

Antenna Connector Type: Pin

Operating Supply Voltage: 3.3 V

Supply Current Receiving: 110 mA, 125 mA

Supply Current Transmitting: 120 mA, 170 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
