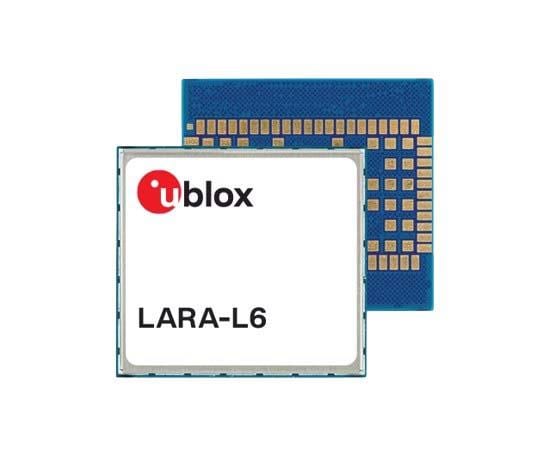

u-blox LARA-L6004-01B ໂມດູນ Multimode LTE Cat 4 LTE Cat 4 /3G/GSM-Global, ຂໍ້ມູນ + ໂທລະສັບ B1,2,3,4,5,7,8,12,13,18,19,20,26,28 LGA, 24x26 mm, 150 ຊຸດ/ລົດ

Data Rate: 150 Mb/s

Frequency: 700 MHz, 800 MH, 850 MHz, 900 MHz, 1.7 GHz, 1.8 GHz, 1.9 GHz, 2.1 GHz, 2.3 GHz, 2.6 GHz

Dimensions: 26 mm x 24 mm x 2.6 mm

Output Power: 33.5 dBm

Interface Type: I2C, UART, USB

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Description/Function: Global LTE FDD / TDD Cat 4 Module with 3G and 2G Fallback. Voice and Data Product Version

Supply Voltage - Max: 4.5 V

Supply Voltage - Min: 3.3 V

Protocol - GPS, GLONASS: EGPRS, GNSS, GPRS, GSM

Operating Supply Voltage: 3.8 V

Supply Current Receiving: 150 mA, 620 mA, 690 mA

Supply Current Transmitting: 150 mA, 620 mA, 690 mA

Maximum Operating Temperature: + 65 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: 2G/3G, Cellular, LTE
