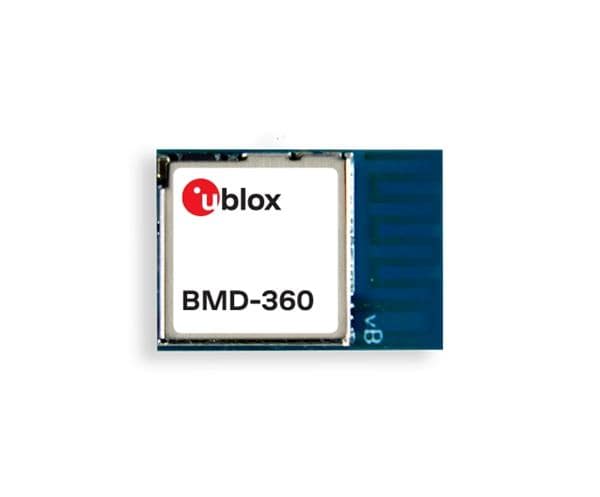

u-blox BMD-360-A-R ມູດູນ Bluetooth MOD BLE 5.1 NORDIC nRF52811 SoC

Core: ARM Cortex M4

Width: 9.8 mm

Height: 1.9 mm

Length: 14 mm

Antenna: Integrated

Protocol: BLE, Bluetooth 5.1

Data Rate: 2 Mb/s

Frequency: 2.43 GHz

Shielding: Unshielded

Dimensions: 14 mm x 9.8 mm x 1.9 mm

Modulation: GFSK

Memory Size: 192 kB

Sensitivity: - 97 dBm

Unit Weight: 7.792 g

Output Power: 4 dBm

Interface Type: I2C, SPI, UART

Mounting Style: SMD/SMT

Frequency Range: 2.36 GHz to 2.5 GHz

Moisture Sensitive: Yes

Modulation Technique: GFSK

Receiver Sensitivity: - 97 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.7 V

Operating Supply Voltage: 1.7 V to 3.6 V

Supply Current Receiving: 11.2 mA

Supply Current Transmitting: 15.4 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
