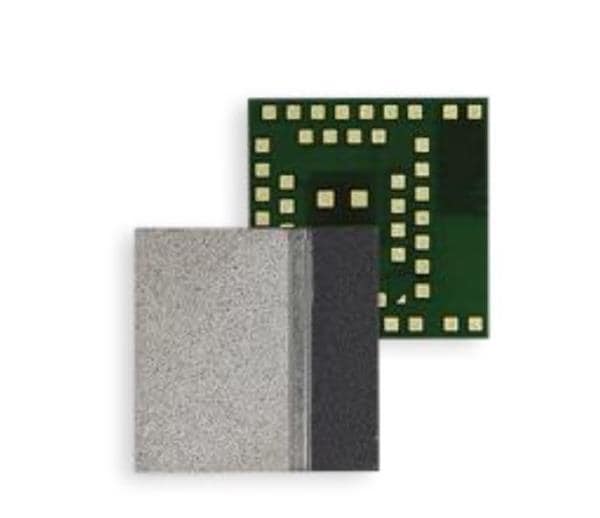

u-blox ANNA-B112-02B ມູດູນ Bluetooth nRF52832, SIP, ຊິບອະນທີນາ, ພິນອະນທີນາ, u-cX / openCPU

Core: ARM Cortex M4

Range: 160 m

Height: 1.2 mm

Length: 6.5 mm

Protocol: BLE, Bluetooth 5.0

Data Rate: 2 Mb/s

Frequency: 2.4 GHz

Dimensions: 6.5 mm x 6.5 mm x 1.2 mm

Memory Size: 512 kB, 64 kB

Output Power: 4 dBm

Interface Type: I2C, I2S, SPI, UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Receiver Sensitivity: - 91 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.71 V

Operating Supply Voltage: 3 V

Supply Current Receiving: 5.4 mA

Supply Current Transmitting: 5.3 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
